* slike so simbolične

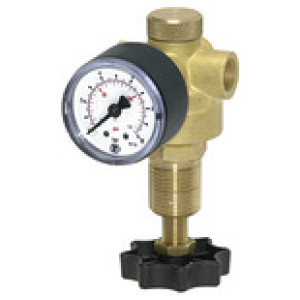

Regulator tlaka za vodo, Manometer, G 1/4, 0.5 - 10 bar
SKU: 101308RIE
EAN: 4047322209670
Pressure regulator for water, pressure gauge, G 1/4, Control range 0.5 - 10 bar, Input pressure max. 40 bar, Temp. 5 °C to 90 °C
Brass diaphragm pressure regulators with non-self-relieving design, specially for use with water.
The regulator protects water installations against high system pressure, prevents pressure fluctuations and helps reduce water consumption. Undesirable flow noises are kept to a minimum.
Povpraševanje
Merjenje pretoka: At P1 = 7 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Ohišje: Brass
Srednje: Water, nitrogen and argon
B [mm]: 104.0

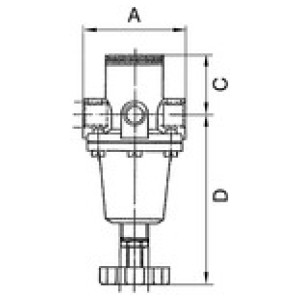

| Šifra | Kolo | Navoj | Pretok [l/min] | Max. krmilno območje [bar] | C [mm] | A [mm] | D [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101308RIE | Plastic | G 1/4 | 2.5 | 10 | 23.0 | 45.0 | 81.0 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101311RIE | Rotary switch | G 1 | 24 | 6 | 41.0 | 114.0 | 175.0 | 216.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101314RIE | Rotary switch | G 1 1/2 | 56 | 10 | 50.0 | 114.0 | 183.0 | 233.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101307RIE | Plastic | G 1/4 | 2.5 | 6 | 23.0 | 45.0 | 81.0 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101313RIE | Rotary switch | G 1 1/2 | 56 | 6 | 50.0 | 114.0 | 183.0 | 233.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101309RIE | Plastic | G 1/2 | 15 | 6 | 30.0 | 72.0 | 123.0 | 153.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101312RIE | Rotary switch | G 1 | 24 | 10 | 41.0 | 114.0 | 175.0 | 216.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101310RIE | Plastic | G 1/2 | 15 | 10 | 30.0 | 72.0 | 123.0 | 153.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Pressure regulator for water, pressure gauge, G 1/4, Control range 0.5 - 10 bar, Input pressure max. 40 bar, Temp. 5 °C to 90 °C
Brass diaphragm pressure regulators with non-self-relieving design, specially for use with water.
The regulator protects water installations against high system pressure, prevents pressure fluctuations and helps reduce water consumption. Undesirable flow noises are kept to a minimum.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 40 |
| Min. temperaturno območje [°C] | 5 |
| Max. temperaturno območje [°C] | 90 |
| Ohišje | Brass |
| Tesnilo | NBR |
| Membrane | NBR |
| Pretok [l/min] | 2.5 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Kolo | Plastic |
| A [mm] | 45.0 |
| B [mm] | 104.0 |
| C [mm] | 23.0 |
| D [mm] | 81.0 |
| Srednje | Water, nitrogen and argon |
| Merjenje pretoka | At P1 = 7 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
