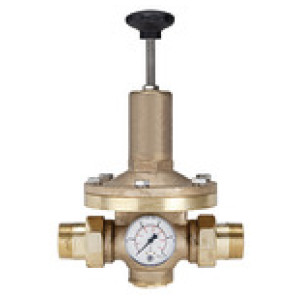

Regulator tlaka za vodo, Manometer, R 1 1/2, 0.2-2 bar
SKU: 101337RIE
EAN: 4047322274715
Pressure regulator for water, incl. pressure gauge, R 1 1/2, Control range 0.2 - 2 bar, Input pressure max. 16 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
Obrestno financiranje
- 25,46 € x 48 mesecev
- 32,53 € x 36 mesecev
- 46,73 € x 24 mesecev
- 89,46 € x 12 mesecev
- 174,99 € x 6 mesecev
- 346,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Vzmet pokrova motorja | Pretok KVS vrednost [m³/h] | DN | D [mm] | C [mm] | A [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101334RIE | R 3/4 | Plastic PA 6 | 3.9 | 20 | 27.0 | 127.0 | 141.0 | 154.0 | Čas dobave 3 - 5 dni | 329,86 € |  | |
| 101337RIE | R 1 1/2 | Cast iron | 12 | 40 | 59.0 | 300.0 | 210.0 | 359.0 | Čas dobave 3 - 5 dni | 956,41 € | | |
| 101338RIE | R 2 | Cast iron | 13 | 50 | 61.0 | 300.0 | 210.0 | 361.0 | Čas dobave 3 - 5 dni | 1.139,25 € | | |
| 101336RIE | R 1 1/4 | Plastic PA 6 | 6.1 | 32 | 47.0 | 109.0 | 177.2 | 156.0 | Čas dobave 3 - 5 dni | 566,34 € | | |
| 101335RIE | R 1 | Plastic PA 6 | 5.4 | 25 | 28.5 | 126.0 | 160.6 | 154.0 | Čas dobave 3 - 5 dni | 379,22 € | | |
| 101333RIE | R 1/2 | Plastic PA 6 | 2.9 | 15 | 27.0 | 127.0 | 137.0 | 154.0 | Čas dobave 3 - 5 dni | 291,03 € | |
Opis
Pressure regulator for water, incl. pressure gauge, R 1 1/2, Control range 0.2 - 2 bar, Input pressure max. 16 bar
Pressure regulator with pressure-reduced single-seated piston valve or single-seated diaphragm valve and built-in strainer. Specially designed for use with water.
The device is also suitable for all other applications involving neutral non-sticky liquids, air and neutral non-flammable gases.
Tehnični podatki in specifikacije
| Navoj | R 1 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Max. delovna temperatura [°C] | 75 |
| Ohišje | Bronze (Rg5) |
| Tesnilo | NBR-SBR |
| Min. krmilno območje [bar] | 0.2 |
| Max. krmilno območje [bar] | 2 |

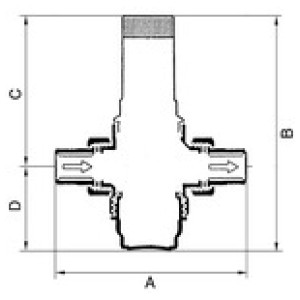

| A [mm] | 210.0 |
| B [mm] | 359.0 |
| C [mm] | 300.0 |
| D [mm] | 59.0 |
| Vzmet pokrova motorja | Cast iron |
| Pretok KVS vrednost [m³/h] | 12 |
| Notranji deli | Plastic, brass, stainless steel |
| Min. primarna (vstopni) tlak [bar] | 1.2 |
| Min. padec tlaka [bar] | 1 |
| DN | 40 |
