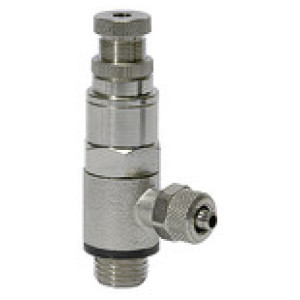

Regulator zgoščenega tlaka, hitri priklop za za cev 8/6, G 1/8
SKU: 107041RIE
EAN: 4047322181631
Compact pressure regulator, Quick connector for hose 8/6, G 1/8, Control range 0 - 8 bar, Temp. 0 °C to 70 °C, nickel-plated brass
Piston pressure regulator with self-relieving design, hollow bolt and pivoting ring piece. The regulator is connected directly into the consumer (e.g. cylinder, handling equipment, etc.). The working pressure can thus be adapted to the specific application.

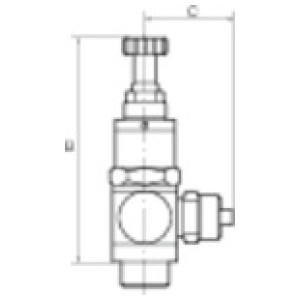

| Šifra | Navoj | Za cevi [mm] | a/f [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 107039RIE | G 1/8 | 5 / 3 | 15 | 25.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € |  | |
| 107043RIE | G 1/4 | 8 / 6 | 17 | 27.5 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | | |
| 107042RIE | G 1/4 | 6 / 4 | 17 | 26.5 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | | |
| 107044RIE | G 1/4 | 10 / 8 | 17 | 28.5 | 63.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | | |
| 107040RIE | G 1/8 | 6 / 4 | 15 | 25.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | | |
| 107041RIE | G 1/8 | 8 / 6 | 15 | 25.0 | 56.0 | Čas dobave: Predvidoma 3 - 5 dni | 38,39 € | |
Opis
Compact pressure regulator, Quick connector for hose 8/6, G 1/8, Control range 0 - 8 bar, Temp. 0 °C to 70 °C, nickel-plated brass
Piston pressure regulator with self-relieving design, hollow bolt and pivoting ring piece. The regulator is connected directly into the consumer (e.g. cylinder, handling equipment, etc.). The working pressure can thus be adapted to the specific application.
Tehnični podatki in specifikacije
| Max. vhodni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 70 |
| Votli vijak | Nickel-plated brass |
| Nihajna roka | Nickel-plated brass |
| Nastavitveni vijak | Nickel-plated brass |
| Notranji deli | Brass with a bare metal surface |
| Tesnilo | NBR |
| Zarobljena tesnila | Polyamide (glass fibre-reinforced) |
| Navoj | G 1/8 |
| Za cevi [mm] | 8 / 6 |
| B [mm] | 56.0 |
| C [mm] | 25.0 |
| a/f [mm] | 15 |
| Max. krmilno območje [bar] | 8 |
