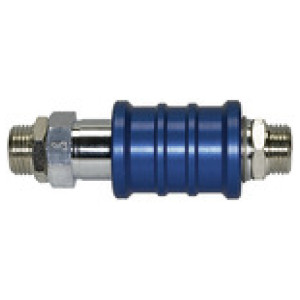

Ročni cevni ventil, G 1/8 ET, AF 14, PN max. 10 bar
SKU: 103759RIE
EAN: 4047322224253
Manual sliding valve, Operating temperature 0 °C to 70 °C, G 1/8 ET, AF 14, PN max. 10 bar
For use on devices that have to be vented whenever they are turned off, either because of safety regulations or for technical reasons. The pneumatic devices are disconnected from the system and simultaneously vented each time they are shut off.
Čas dobave: Predvidoma 3 - 5 dni
15,70 €

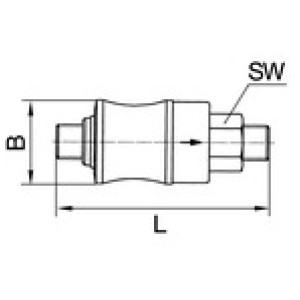

| Šifra | Navoj | a/f [mm] | B [mm] | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|
| 103760RIE | G 1/4 ET | 17 | 24.0 | 77.0 | Čas dobave: Predvidoma 3 - 5 dni | 20,28 € |  | |
| 103762RIE | G 1/2 ET | 26 | 35.0 | 104.0 | Čas dobave: Predvidoma 3 - 5 dni | 30,40 € | | |
| 117405RIE | G 1/4 IT | 17 | 24.0 | 51.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,07 € | | |
| 117404RIE | G 1/8 IT | 14 | 21.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 13,38 € | | |
| 117406RIE | G 3/8 IT | 22 | 31.0 | 59.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,90 € | | |
| 117407RIE | G 1/2 IT | 26 | 35.0 | 72.5 | Čas dobave: Predvidoma 3 - 5 dni | 30,29 € | | |
| 103761RIE | G 3/8 ET | 22 | 31.0 | 87.0 | Čas dobave: Predvidoma 3 - 5 dni | 27,49 € | | |
| 103759RIE | G 1/8 ET | 14 | 21.0 | 67.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,70 € | |
Opis
Manual sliding valve, Operating temperature 0 °C to 70 °C, G 1/8 ET, AF 14, PN max. 10 bar
For use on devices that have to be vented whenever they are turned off, either because of safety regulations or for technical reasons. The pneumatic devices are disconnected from the system and simultaneously vented each time they are shut off.
Tehnični podatki in specifikacije
| Max. obratovalni tlak [bar] | 10 |
| Max. delovna temperatura [°C] | 70 |
| Navoj | G 1/8 ET |
| L [mm] | 67.0 |
| B [mm] | 21.0 |
| a/f [mm] | 14 |
