Serv. enota 2-delna »G«Kov. pos.5 µmVel. 600G 3/4
SKU: 116383RIE
EAN: 4047322307703

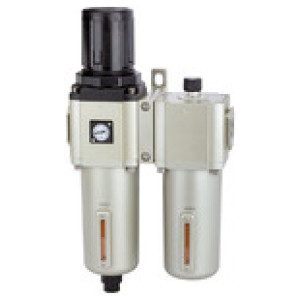

Service unit 2-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4, Input pressure max. 10 bar, Control range 1.5-9 bar

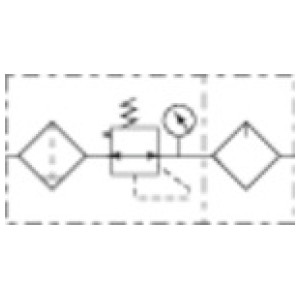

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 2-delna »G«Kov. pos.5 µmVel. 600G 3/4
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 3/4
Odtok kondenzata: Fully-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Vidna kupola: Brass/POM

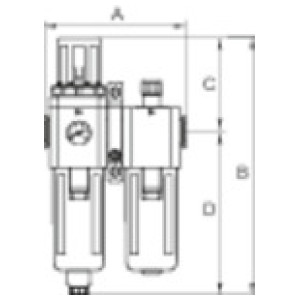

C [mm]: 144.0
A [mm]: 190.0
D [mm]: 219.0
B [mm]: 363.0
Navoj: G 3/4
Odtok kondenzata: Fully-automatic
Ohišje: Die-cast aluminium
Posoda: Metal container with viewing tube
Vidna kupola: Brass/POM
C [mm]: 144.0
A [mm]: 190.0
D [mm]: 219.0
B [mm]: 363.0
| Šifra | Navoj | Odtok kondenzata | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 116384RIE | G 1 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116382RIE | G 3/4 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116383RIE | G 3/4 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116385RIE | G 1 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Service unit 2-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4, Input pressure max. 10 bar, Control range 1.5-9 bar
Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 600 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Metal container with viewing tube |
| Pretok [l/min] | 4200 |
| Odtok kondenzata | Fully-automatic |
| A [mm] | 190.0 |
| B [mm] | 363.0 |
| C [mm] | 144.0 |
| D [mm] | 219.0 |
| Serija | G |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
