Serv. enota 2-delna »GA« PC zbir.5 µm, Vel. 400, G 1/2
SKU: 178495RIE
EAN: 4047322666923

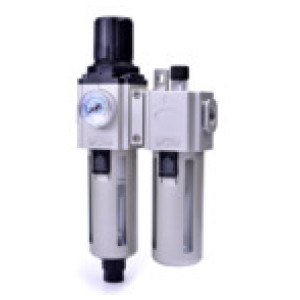

Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 400, G1/2, Input pressure max. 10 bar, Control range 1.5-9 bar

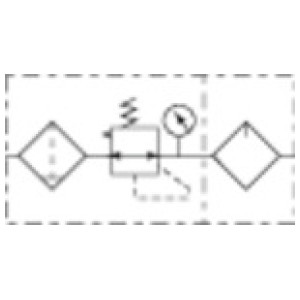

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 17,12 € x 12 mesecev
- 33,50 € x 6 mesecev
- 66,25 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | C [mm] | A [mm] | D [mm] | B [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 178492RIE | G 3/8 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € |  | |
| 178500RIE | G 1/2 | Fully-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 207,84 € | | |
| 178494RIE | G 3/8 | Semi-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 182,71 € | | |
| 178497RIE | G 3/8 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
| 178496RIE | G 1/4 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
| 178491RIE | G 1/4 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € | | |
| 178493RIE | G 1/2 | Semi-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 105,10 € | | |
| 178498RIE | G 1/2 | Fully-automatic | 89.0 | 128.5 | 158.0 | 247.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 152,10 € | | |
| 178499RIE | G 3/8 | Fully-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 207,84 € | | |
| 178495RIE | G 1/2 | Semi-automatic | 108.0 | 164.0 | 177.5 | 285.5 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 182,71 € | |
Opis
Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 400, G1/2, Input pressure max. 10 bar, Control range 1.5-9 bar
Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 400 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Polycarbonate container with protective cage |
| Pretok [l/min] | 3500 |
| Odtok kondenzata | Semi-automatic |

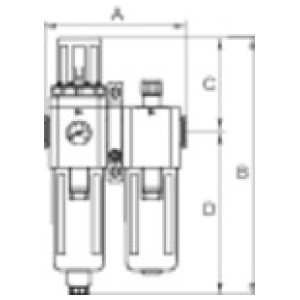

| A [mm] | 164.0 |
| B [mm] | 285.5 |
| C [mm] | 108.0 |
| D [mm] | 177.5 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
