Serv. enota 2-delna »multifix«Zašč. kletkaVel.4,G 3/4
SKU: 133123RIE
EAN: 4047322476126
Service unit 2-part »multifix«, PC container, Protective cage, Size 4, G 3/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 12,20 € x 48 mesecev
- 15,58 € x 36 mesecev
- 22,39 € x 24 mesecev
- 42,86 € x 12 mesecev
- 83,83 € x 6 mesecev
- 165,81 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100572RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 67.0 | 92.8 | 125.1 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 154,68 € |  | |
| 133123RIE | G 3/4 | Die-cast aluminium | 4 | 5 | 20 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 458,40 € | | |
| 100571RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 67.0 | 92.8 | 125.1 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 147,19 € | | |
| 133124RIE | G 1 | Die-cast aluminium | 4 | 5 | 25 | 125.0 | 170.0 | 190.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 458,40 € | | |
| 100575RIE | G 1 | Aluminium | 5 | 40 | 25 | 128.0 | 200.0 | 253.8 | 381.8 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | 670,26 € | | |
| 100574RIE | G 3/4 | Die-cast zinc | 3 | 5 | 20 | 99.0 | 134.8 | 147.3 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 243,41 € | | |
| 100573RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 99.0 | 134.8 | 147.3 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 245,63 € | |
Opis
Service unit 2-part »multifix«, PC container, Protective cage, Size 4, G 3/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 12000 |
| DN | 20 |
| Poraba zraka | Yes |
| Ohišje | Die-cast aluminium |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container with protective cage |

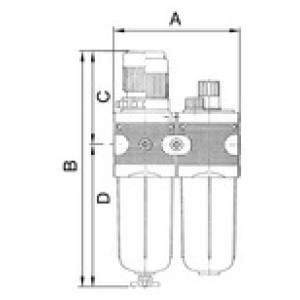

| A [mm] | 170.0 |
| B [mm] | 315.0 |
| C [mm] | 125.0 |
| D [mm] | 190.0 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
