Serv. enota 2-delna »Stinard« z PC zbir.Vel.1,G 3/8
SKU: 101047RIE
EAN: 4047322120814

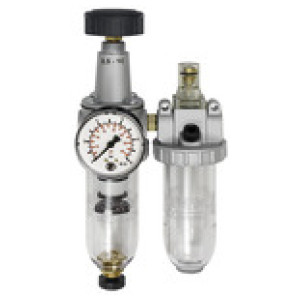

Service unit 2-part »Standard« with polycarbonate container, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 10,95 € x 12 mesecev
- 21,42 € x 6 mesecev
- 42,36 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Velikost | DN | Rang filtra [µm] | Manometer Ø [mm] | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
174099RIE | G 1 | 4 | 25 | 40 | 63 | 129.0 | 222.0 | 392.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 498,80 € | ||
101049RIE | G 1/2 | 3 | 15 | 5 | 63 | 130.0 | 175.0 | 299.4 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 212,38 € | ||
101046RIE | G 1/4 | 1 | 6 | 5 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 117,47 € | ||
101051RIE | G 1 | 4 | 25 | 40 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
174098RIE | G 3/4 | 4 | 20 | 40 | 63 | 129.0 | 222.0 | 392.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 498,80 € | ||
101048RIE | G 3/8 | 2 | 10 | 40 | 63 | 120.5 | 150.0 | 266.4 | 800 | Čas dobave: Predvidoma 3 - 5 dni | 212,38 € | ||
101050RIE | G 3/4 | 4 | 20 | 40 | 63 | 190.6 | 220.0 | 452.0 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | ? | Povpraševanje | |
101047RIE | G 3/8 | 1 | 6 | 5 | 50 | 106.5 | 117.0 | 236.2 | 600 | Čas dobave: Predvidoma 3 - 5 dni | 117,47 € |
Opis
Service unit 2-part »Standard« with polycarbonate container, Size 1, G 3/8, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 3/8 |
Max. vhodni tlak [bar] | 16 |
Velikost | 1 |
Ohišje | Die-cast zinc / aluminium, painted silver |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 600 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 16 |
Odtok kondenzata | Semi-automatic |
DN | 6 |
Manometer Ø [mm] | 50 |
Vidna kupola | PA |
Rang filtra [µm] | 5 |
Posoda | Polycarbonate container |

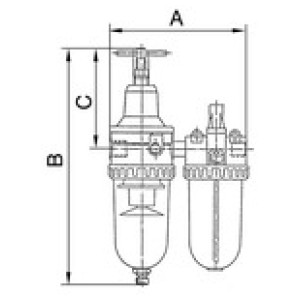

A [mm] | 117.0 |
B [mm] | 236.2 |
C [mm] | 106.5 |
Serija | Standard |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
