Serv. enota 3-delna »G«Kov. pos.5 µmVel. 600G 3/4
SKU: 116427RIE
EAN: 4047322308397

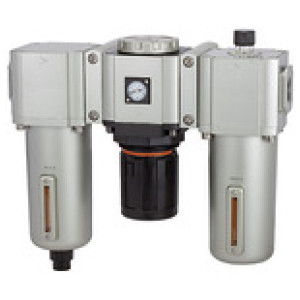

Service unit 3-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4, Input pressure max. 10 bar, Control range 1.5-9 bar

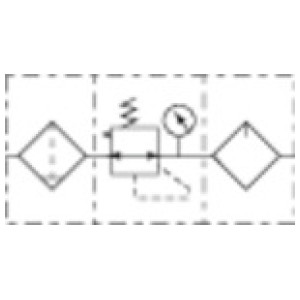

Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 10,04 € x 48 mesecev
- 12,83 € x 36 mesecev
- 18,43 € x 24 mesecev
- 35,28 € x 12 mesecev
- 69,01 € x 6 mesecev
- 136,49 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 116428RIE | G 3/4 | Fully-automatic | Čas dobave 3 - 5 dni | ? | Povpraševanje |  |
| 116430RIE | G 1 | Fully-automatic | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 116427RIE | G 3/4 | Semi-automatic | Čas dobave 3 - 5 dni | 376,72 € | | |
| 116429RIE | G 1 | Semi-automatic | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Service unit 3-part »G«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4, Input pressure max. 10 bar, Control range 1.5-9 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 600 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Max. temperatura medija [°C] | 70 |
| Max. sobna temperatura [°C] | 70 |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Metal container with viewing tube |
| Pretok [l/min] | 3750 |
| Odtok kondenzata | Semi-automatic |

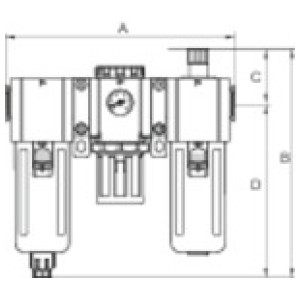

| A [mm] | 295.0 |
| B [mm] | 280.5 |
| C [mm] | 61.5 |
| D [mm] | 219.0 |
| Serija | G |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
