Serv. enota 3-delna »G-mali«5 µmVel. 200G 1/81.5 - 9 bar

SKU: 116415RIE
EAN: 4047322308540

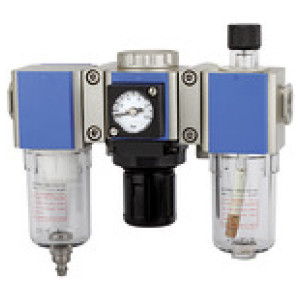

Service unit 3-part »G-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar

Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
116416RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
116415RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Service unit 3-part »G-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar

Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Tehnični podatki in specifikacije

Navoj G 1/8
Max. vhodni tlak [bar] 10
Velikost 200
Ohišje Die-cast aluminium
Tesnilo NBR
Rang filtra [µm] 5
Vidna kupola Brass/POM
Max. temperatura medija [°C] 70
Max. sobna temperatura [°C] 70
Vzmet pokrova motorja POM
Min. krmilno območje [bar] 1.5
Max. krmilno območje [bar] 9
Pretok [l/min] 500
Odtok kondenzata Semi-automatic

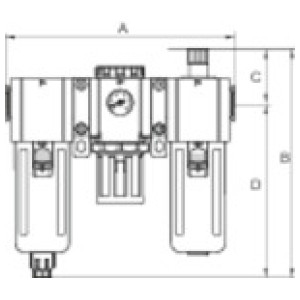

A [mm] 138.0
B [mm] 132.0
C [mm] 39.0
D [mm] 93.0
Serija G-mini
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
