Serv. enota 3-delna »GA« Kov. pos.5 µm, Vel. 600, G 3/4
SKU: 178517RIE
EAN: 4047322667142

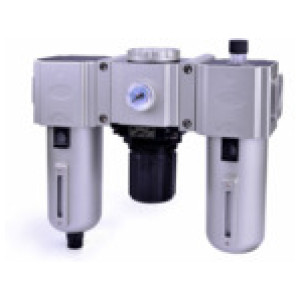

Service unit 3-part »GA«, Metal container, Viewing tube, 5 µm, Size 600, G3/4, Input pressure max. 10 bar, Control range 1.5-9 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 10,78 € x 48 mesecev
- 13,78 € x 36 mesecev
- 19,80 € x 24 mesecev
- 37,90 € x 12 mesecev
- 74,13 € x 6 mesecev
- 146,63 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 178516RIE | G 1 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | 376,72 € |  | |
| 178515RIE | G 3/4 | Semi-automatic | Čas dobave: Predvidoma 3 - 5 dni | 376,72 € | | |
| 178518RIE | G 1 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | 405,14 € | | |
| 178517RIE | G 3/4 | Fully-automatic | Čas dobave: Predvidoma 3 - 5 dni | 405,14 € | |
Opis
Service unit 3-part »GA«, Metal container, Viewing tube, 5 µm, Size 600, G3/4, Input pressure max. 10 bar, Control range 1.5-9 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 600 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Metal container with viewing tube |
| Pretok [l/min] | 4800 |
| Odtok kondenzata | Fully-automatic |

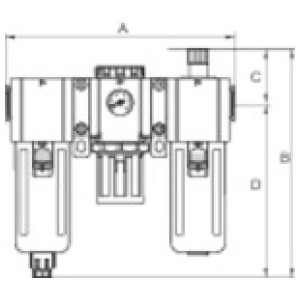

| A [mm] | 312.0 |
| B [mm] | 267.5 |
| C [mm] | 62.5 |
| D [mm] | 205.0 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
