Serv. enota 3-delna »GA-mali«5 µm,Vel.200, G1/8, 1.5 - 9 bar
SKU: 178363RIE
EAN: 4047322666343

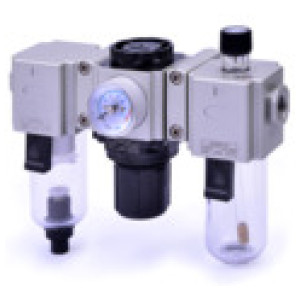

Service unit 3-part »GA-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar

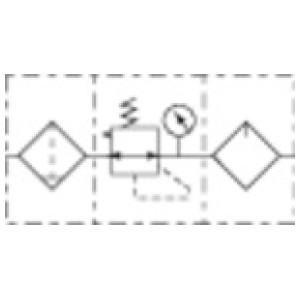

Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 10,11 € x 12 mesecev
- 19,77 € x 6 mesecev
- 39,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
178363RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 108,38 € | ||
178364RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 108,38 € |
Opis
Service unit 3-part »GA-mini«, with PC container, 5 µm, Size 200, G 1/8, Input pressure max. 10 bar, Control range 1.5 - 9 bar
Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 1/8 |
Min. temperaturno območje [°C] | -5 |
Max. temperaturno območje [°C] | 70 |
Max. vhodni tlak [bar] | 10 |
Velikost | 200 |
Ohišje | Die-cast aluminium |
Tesnilo | NBR |
Rang filtra [µm] | 5 |
Vidna kupola | Brass/POM |
Vzmet pokrova motorja | POM |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 9 |
Pretok [l/min] | 900 |
Odtok kondenzata | Semi-automatic |

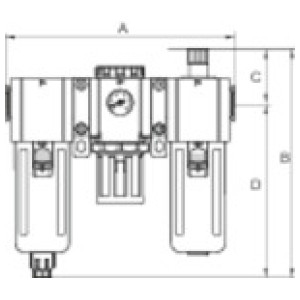

A [mm] | 163.5 |
B [mm] | 138.0 |
C [mm] | 40.0 |
D [mm] | 98.0 |
Serija | GA-mini |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
