Serv. enota 3-delna »GA« PC zbir.5 µm, Vel. 300, G 1/4
SKU: 178505RIE
EAN: 4047322667029

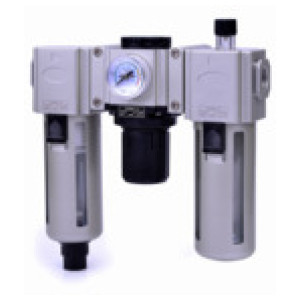

Service unit 3-part »GA«, PC container, Protective cage, 5 µm, Size 300, G1/4, Input pressure max. 10 bar, Control range 1.5-9 bar

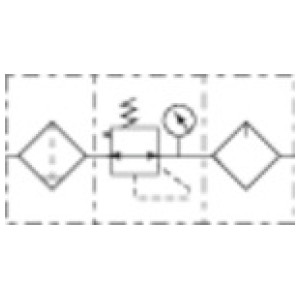

Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 11,14 € x 12 mesecev
- 21,78 € x 6 mesecev
- 43,08 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

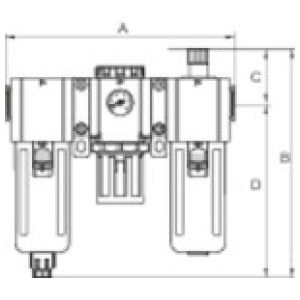

| Šifra | Navoj | Odtok kondenzata | C [mm] | D [mm] | B [mm] | A [mm] | Velikost | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 178513RIE | G 3/8 | Fully-automatic | 49.5 | 177.5 | 227.0 | 248.0 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 222,86 € |  | |
| 178511RIE | G 3/8 | Fully-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 167,40 € | | |
| 178507RIE | G 1/2 | Semi-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 118,80 € | | |
| 178508RIE | G 3/8 | Semi-automatic | 49.5 | 177.5 | 227.0 | 248.0 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 177,38 € | | |
| 178506RIE | G 3/8 | Semi-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 118,80 € | | |
| 178509RIE | G 1/2 | Semi-automatic | 49.5 | 177.5 | 227.0 | 248.0 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 177,38 € | | |
| 178514RIE | G 1/2 | Fully-automatic | 49.5 | 177.5 | 227.0 | 248.0 | 400 | 3500 | Čas dobave: Predvidoma 3 - 5 dni | 222,86 € | | |
| 178512RIE | G 1/2 | Fully-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 2000 | Čas dobave: Predvidoma 3 - 5 dni | 167,40 € | | |
| 178510RIE | G 1/4 | Fully-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 167,40 € | | |
| 178505RIE | G 1/4 | Semi-automatic | 45.5 | 158.0 | 203.5 | 195.0 | 300 | 1550 | Čas dobave: Predvidoma 3 - 5 dni | 118,80 € | |
Opis
Service unit 3-part »GA«, PC container, Protective cage, 5 µm, Size 300, G1/4, Input pressure max. 10 bar, Control range 1.5-9 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Min. temperaturno območje [°C] | -5 |
| Max. temperaturno območje [°C] | 70 |
| Max. vhodni tlak [bar] | 10 |
| Velikost | 300 |
| Ohišje | Die-cast aluminium |
| Tesnilo | NBR |
| Rang filtra [µm] | 5 |
| Vidna kupola | Brass/POM |
| Vzmet pokrova motorja | POM |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 9 |
| Posoda | Polycarbonate container with protective cage |
| Pretok [l/min] | 1550 |
| Odtok kondenzata | Semi-automatic |
| A [mm] | 195.0 |
| B [mm] | 203.5 |
| C [mm] | 45.5 |
| D [mm] | 158.0 |
| Serija | GA |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
