Serv. enota 3-delna »multifix«Kov. pos.Vel.1,G 1/4
SKU: 100591RIE
EAN: 4047322131971

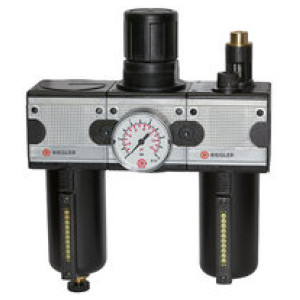

Service unit 3-part »multifix«, Metal container, Viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 3-delna »multifix«Kov. pos.Vel.1,G 1/4
Merjenje pretoka: At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Metal container with viewing tube
Serija: multifix
Vidna kupola: Zinc-glass-NBR
Vzmet pokrova motorja: POM-brass

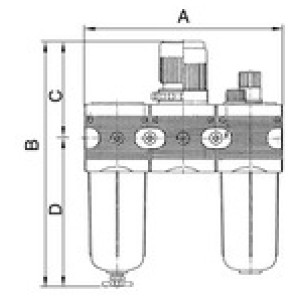

D [mm]: 125.5
A [mm]: 137.8
B [mm]: 192.5
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Metal container with viewing tube
Serija: multifix
Vidna kupola: Zinc-glass-NBR
Vzmet pokrova motorja: POM-brass
D [mm]: 125.5
A [mm]: 137.8
B [mm]: 192.5
| Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | C [mm] | D [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133130RIE | G 1 | Die-cast aluminium | 4 | 5 | 25 | 125.0 | 190.0 | 255.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100594RIE | G 3/4 | Die-cast zinc | 3 | 5 | 20 | 99.0 | 149.2 | 200.8 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100593RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 99.0 | 149.2 | 200.8 | 248.2 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 133129RIE | G 3/4 | Die-cast aluminium | 4 | 5 | 20 | 125.0 | 190.0 | 255.0 | 315.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100595RIE | G 1 | Aluminium | 5 | 40 | 25 | 128.0 | 255.7 | 300.0 | 383.7 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100592RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 67.0 | 125.5 | 137.8 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100591RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 67.0 | 125.5 | 137.8 | 192.5 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Service unit 3-part »multifix«, Metal container, Viewing tube, Size 1, G 1/4, Input pressure max. 20 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 20 |
| Velikost | 1 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 1200 |
| DN | 6 |
| Ohišje | Die-cast zinc |
| Vidna kupola | Zinc-glass-NBR |
| Rang filtra [µm] | 5 |
| Posoda | Metal container with viewing tube |
| A [mm] | 137.8 |
| B [mm] | 192.5 |
| C [mm] | 67.0 |
| D [mm] | 125.5 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
