Serv. enota 3-delna »multifix-mali«PC zbir.Vel. 0G 1/8
SKU: 100398RIE
EAN: 4047322345385

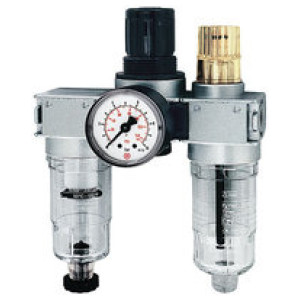

Service unit 3-part »multifix-mini« with PC container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 3-delna »multifix-mali«PC zbir.Vel. 0G 1/8
Merjenje pretoka: At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
Navoj: G 1/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Vzmet pokrova motorja: POM-brass
D [mm]: 102.5
A [mm]: 120.0
B [mm]: 165.5
Navoj: G 1/8
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc
Posoda: Polycarbonate container
Serija: multifix-mini
Vzmet pokrova motorja: POM-brass
D [mm]: 102.5
A [mm]: 120.0
B [mm]: 165.5
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100399RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100398RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Service unit 3-part »multifix-mini« with PC container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 12 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 750 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container |

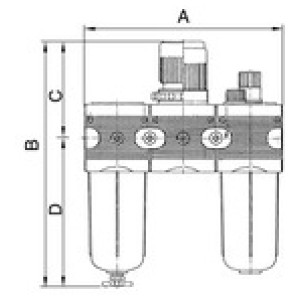

| A [mm] | 120.0 |
| B [mm] | 165.5 |
| C [mm] | 63.0 |
| D [mm] | 102.5 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
