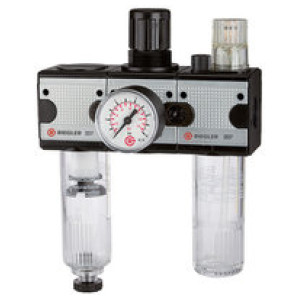

Serv. enota 3-delna »multifix« z PC zbir.Vel. 3G 1/2
SKU: 100583RIE
EAN: 4047322344777
Service unit 3-part »multifix« with polycarbonate container, Size 3, G 1/2, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 11,29 € x 24 mesecev
- 21,62 € x 12 mesecev
- 42,28 € x 6 mesecev
- 83,63 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

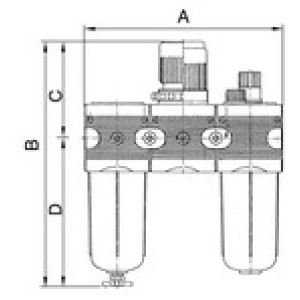

| Šifra | Navoj | Ohišje | Velikost | Rang filtra [µm] | DN | C [mm] | D [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100582RIE | G 3/8 | Die-cast zinc | 1 | 5 | 10 | 67.0 | 125.1 | 137.8 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 157,04 € |  | |
| 100581RIE | G 1/4 | Die-cast zinc | 1 | 5 | 6 | 67.0 | 125.1 | 137.8 | 192.1 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 154,11 € | | |
| 100584RIE | G 3/4 | Die-cast zinc | 3 | 5 | 25 | 99.0 | 147.3 | 200.8 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 230,51 € | | |
| 100585RIE | G 1 | Aluminium | 5 | 40 | 25 | 128.0 | 253.8 | 300.0 | 381.8 | 13500 | Čas dobave: Predvidoma 3 - 5 dni | 644,06 € | | |
| 100583RIE | G 1/2 | Die-cast zinc | 3 | 5 | 15 | 99.0 | 147.3 | 200.8 | 246.3 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 230,51 € | |
Opis
Service unit 3-part »multifix« with polycarbonate container, Size 3, G 1/2, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 5800 |
| DN | 15 |
| Ohišje | Die-cast zinc |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container |
| A [mm] | 200.8 |
| B [mm] | 246.3 |
| C [mm] | 99.0 |
| D [mm] | 147.3 |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
