Serv. enota 3-delna »Stinard« z PC zbir.Vel. 3G 1/2
SKU: 101067RIE
EAN: 4047322121392

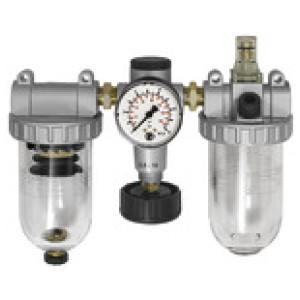

Service unit 3-part »Standard« with polycarbonate container, Size 3, G 1/2, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Obrestno financiranje
- 11,05 € x 24 mesecev
- 21,15 € x 12 mesecev
- 41,37 € x 6 mesecev
- 81,82 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Merjenje pretoka | Navoj | Velikost | Rang filtra [µm] | DN | Manometer Ø [mm] | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101065RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 5 | 6 | 50 | 51.0 | 182.6 | 185.0 | 600 | Čas dobave 3 - 5 dni | 137,19 € |  | |
| 101069RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 5 | 25 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave 3 - 5 dni | 465,74 € | | |
| 101066RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 40 | 6 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Čas dobave 3 - 5 dni | 200,25 € | | |
| 101067RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 5 | 15 | 63 | 55.0 | 223.4 | 259.0 | 3200 | Čas dobave 3 - 5 dni | 225,79 € | | |
| 101070RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 40 | 25 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave 3 - 5 dni | 1.007,95 € | | |
| 101068RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 5 | 20 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave 3 - 5 dni | 464,86 € | | |
| 101064RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 5 | 6 | 50 | 51.0 | 182.6 | 172.0 | 600 | Čas dobave 3 - 5 dni | 137,19 € | | |
| 206302RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 5 | 6 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Ni na zalogi | ? | Povpraševanje | |
| 101071RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 40 | 35 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave 3 - 5 dni | 949,45 € | |
Opis
Service unit 3-part »Standard« with polycarbonate container, Size 3, G 1/2, Input pressure max. 16 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Ohišje | Die-cast zinc / aluminium, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 3200 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 15 |
| Manometer Ø [mm] | 63 |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container |

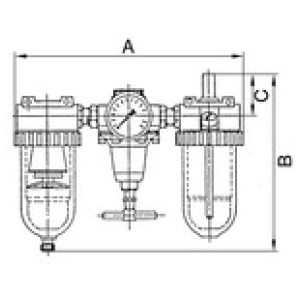

| A [mm] | 259.0 |
| B [mm] | 223.4 |
| C [mm] | 55.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
