Serv. enota 3-delna »Stinard«Zašč. kletkaVel.1,G 1/4
SKU: 101072RIE
EAN: 4047322121132

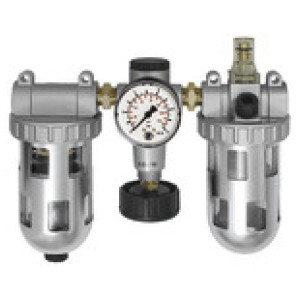

Service unit 3-part »Standard«, PC container, protective cage, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Serv. enota 3-delna »Stinard«Zašč. kletkaVel.1,G 1/4
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc / aluminium, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
A [mm]: 172.0
B [mm]: 182.6
Navoj: G 1/4
Odtok kondenzata: Semi-automatic
Ohišje: Die-cast zinc / aluminium, painted silver
Posoda: Polycarbonate container with protective cage
Serija: Standard
A [mm]: 172.0
B [mm]: 182.6
Aktivni filtri - 0
| Šifra | Merjenje pretoka | Navoj | Velikost | DN | Rang filtra [µm] | Manometer Ø [mm] | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101072RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/4 | 1 | 6 | 5 | 50 | 51.0 | 182.6 | 172.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 101073RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 1 | 6 | 5 | 50 | 51.0 | 182.6 | 185.0 | 600 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101074RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/8 | 2 | 6 | 40 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101075RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1/2 | 3 | 15 | 5 | 63 | 55.0 | 223.4 | 259.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101076RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 3/4 | 3 | 20 | 5 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101077RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 | 3 | 25 | 5 | 63 | 58.0 | 227.9 | 302.0 | 3200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101078RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/4 | 4 | 25 | 40 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 101079RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar | G 1 1/2 | 4 | 35 | 40 | 63 | 70.0 | 313.4 | 395.0 | 5000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 206303RIE | At P1 = 8 bar, P2 = 6 bar and pressure drop ?p = 1 bar | G 3/8 | 2 | 6 | 5 | 50 | 51.0 | 196.7 | 232.0 | 1400 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Prikazujem 1 do 9 od 9 zapisov
Opis
Service unit 3-part »Standard«, PC container, protective cage, Size 1, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar
Three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure,
with self-relieving design, centrifugal separator and proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 1 |
| Ohišje | Die-cast zinc / aluminium, painted silver |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 600 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Odtok kondenzata | Semi-automatic |
| DN | 6 |
| Manometer Ø [mm] | 50 |
| Vidna kupola | PA |
| Rang filtra [µm] | 5 |
| Posoda | Polycarbonate container with protective cage |

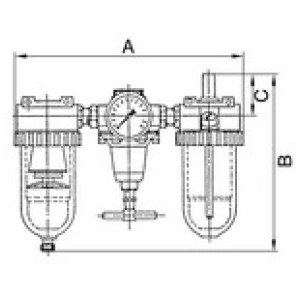

| A [mm] | 172.0 |
| B [mm] | 182.6 |
| C [mm] | 51.0 |
| Serija | Standard |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
