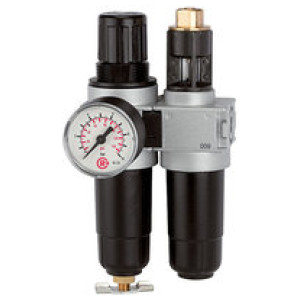

Servisna enota 2-delna »multifix-mali«, Kovinska posoda, G 1/8 slika
Servisna enota 2-delna »multifix-mali«, Kovinska posoda, G 1/8 slika
Servisna enota 2-delna »multifix-mali«, Kovinska posoda, G 1/8 slika

* slike so simbolične

Servisna enota 2-delna »multifix-mali«, Kovinska posoda, G 1/8

SKU: 100396RIE
EAN: 4047322124782

Service unit 2-part »multifix-mini« with metal container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
100397RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
100396RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Service unit 2-part »multifix-mini« with metal container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar

Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Tehnični podatki in specifikacije

Navoj G 1/8
Max. vhodni tlak [bar] 12
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Vzmet pokrova motorja POM-brass
Odtok kondenzata Semi-automatic
Min. krmilno območje [bar] 0.5
Max. krmilno območje [bar] 10
Zaslon manometra max. [bar] 16
Pretok [l/min] 700
DN 5
Ohišje Die-cast zinc
Vidna kupola Zinc-glass-NBR
Rang filtra [µm] 5
Posoda Metal container

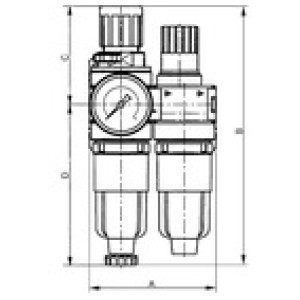

A [mm] 80.0
B [mm] 162.0
C [mm] 63.0
D [mm] 99.0
Serija multifix-mini
Merjenje pretoka At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar
