* slike so simbolične
Servisna enota 3-delna »multifix-mali«, Kovinska posoda, G 1/8
SKU: 100400RIE
EAN: 4047322131896
Service unit 3-part »multifix-mini« with metal container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 15,53 € x 12 mesecev
- 30,39 € x 6 mesecev
- 60,10 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|
| 100400RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 165,77 € |  | |
| 100401RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 165,77 € | |
Opis
Service unit 3-part »multifix-mini« with metal container, Size 0, G 1/8, Input pressure max. 12 bar, Control range 0.5 - 10 bar
Three-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
| Navoj | G 1/8 |
| Max. vhodni tlak [bar] | 12 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Vzmet pokrova motorja | POM-brass |
| Odtok kondenzata | Semi-automatic |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Pretok [l/min] | 750 |
| DN | 5 |
| Ohišje | Die-cast zinc |
| Vidna kupola | Zinc-glass-NBR |
| Rang filtra [µm] | 5 |
| Posoda | Metal container |

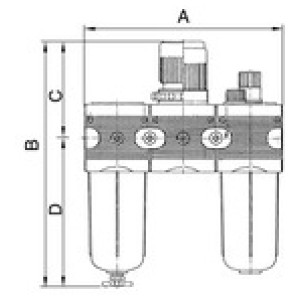

| A [mm] | 120.0 |
| B [mm] | 162.3 |
| C [mm] | 63.0 |
| D [mm] | 99.3 |
| Serija | multifix-mini |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
