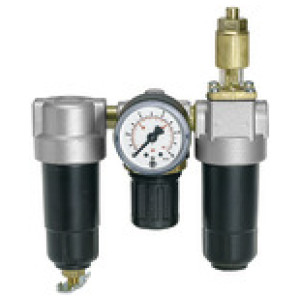

Servisna enota 3-delna »Stinard-mali« s kovinsko posodo, G 1/4
SKU: 100804RIE
EAN: 4047322121200
Service unit 3-part »Standard-mini«, Metal container, pressure gauge, G 1/4, Input pressure max. 25 bar, Control range 0.5-10 bar
Compact, three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Obrestno financiranje
- 17,03 € x 12 mesecev
- 33,31 € x 6 mesecev
- 65,89 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
Šifra | Navoj | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|
100804RIE | G 1/4 | Čas dobave: Predvidoma 3 - 5 dni | 181,95 € | ||
100803RIE | G 1/8 | Čas dobave: Predvidoma 3 - 5 dni | 181,95 € |
Opis
Service unit 3-part »Standard-mini«, Metal container, pressure gauge, G 1/4, Input pressure max. 25 bar, Control range 0.5-10 bar
Compact, three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Tehnični podatki in specifikacije
Navoj | G 1/4 |
Max. vhodni tlak [bar] | 25 |
Ohišje | Die-cast zinc, painted silver |
Tesnilo | NBR |
Max. temperatura medija [°C] | 60 |
Max. sobna temperatura [°C] | 60 |
Pretok [l/min] | 300 |
Min. krmilno območje [bar] | 0.5 |
Max. krmilno območje [bar] | 10 |
Zaslon manometra max. [bar] | 16 |
Odtok kondenzata | Manual |
DN | 5 |
Vidna kupola | Zinc-glass-NBR |
Rang filtra [µm] | 5 |
Posoda | Metal container |

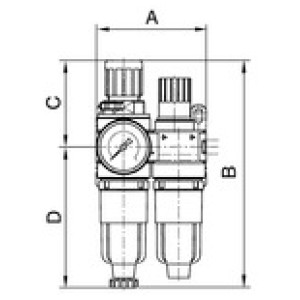

A [mm] | 130.0 |
B [mm] | 168.7 |
C [mm] | 70.2 |
D [mm] | 98.5 |
Serija | Standard-mini |
Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
