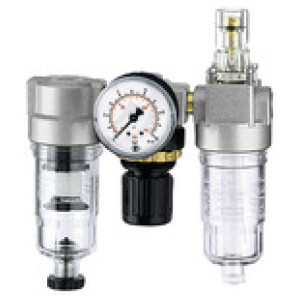

Servisna enota 3-delna »Stinard-mali« z PC zbiralnik, G 1/4 slika
Servisna enota 3-delna »Stinard-mali« z PC zbiralnik, G 1/4 slika
Servisna enota 3-delna »Stinard-mali« z PC zbiralnik, G 1/4 slika

* slike so simbolične

Servisna enota 3-delna »Stinard-mali« z PC zbiralnik, G 1/4

SKU: 100802RIE
EAN: 4047322121187

Service unit 3-part »Standard-mini«, PC container and pressure gauge, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar

Compact, three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Čas dobave: Predvidoma 3 - 5 dni
Pošljite povpraševanje
Primerjaj z ostalimi
Šifra Navoj Zaloga Cena Nakup Natisni
100801RIE G 1/8
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni
100802RIE G 1/4
Čas dobave: Predvidoma 3 - 5 dni
 Povpraševanje Povpraševanje Natisni

Opis

Service unit 3-part »Standard-mini«, PC container and pressure gauge, G 1/4, Input pressure max. 16 bar, Control range 0.5-10 bar

Compact, three-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.

Tehnični podatki in specifikacije

Navoj G 1/4
Max. vhodni tlak [bar] 16
Ohišje Die-cast zinc, painted silver
Tesnilo NBR
Max. temperatura medija [°C] 60
Max. sobna temperatura [°C] 60
Pretok [l/min] 300
Min. krmilno območje [bar] 0.5
Max. krmilno območje [bar] 10
Zaslon manometra max. [bar] 16
Odtok kondenzata Semi-automatic
DN 5
Vidna kupola PA
Rang filtra [µm] 5
Posoda Polycarbonate container

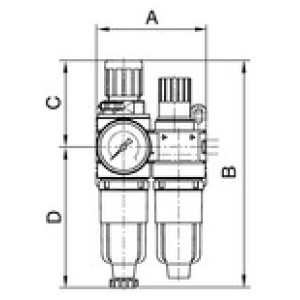

A [mm] 130.0
B [mm] 151.5
C [mm] 49.5
D [mm] 102.0
Serija Standard-mini
Merjenje pretoka At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
