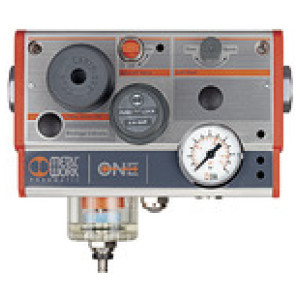

Servisna enota »ENO« brez tlačnega stikala, G 1/4
SKU: 101122RIE
EAN: 531201830100
Service unit »ONE« without pressure switch, G 1/4, Input pressure max. 10 bar, Control range 0.5 - 8 bar, Temp. -10 °C to 50 °C
Multifunctional service unit with 6 or 7 functions in a single device:
3/2-way valve (manually operated), filter with automatic drain valve, air ports, pressure regulator, pressure gauge, soft start valve and optional pressure switch
This combination of extremely good flow rates and a wide range of functions integrated in a single, compact unit saves valuable space and is unmatched by any similar product available in the market!
Soft starting independently of the load and easy replacement of the filter cartridge under pressure are just two of the other outstanding features of this amazing device.
Obrestno financiranje
- 12,69 € x 36 mesecev
- 18,23 € x 24 mesecev
- 34,90 € x 12 mesecev
- 68,28 € x 6 mesecev
- 135,04 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 101123RIE | G 3/8 | 3300 | Čas dobave: Predvidoma 3 - 5 dni | 373,41 € |  | |
| 101124RIE | G 1/2 | 4000 | Čas dobave: Predvidoma 3 - 5 dni | 380,69 € | | |
| 101122RIE | G 1/4 | 2400 | Čas dobave: Predvidoma 3 - 5 dni | 373,41 € | |
Opis
Service unit »ONE« without pressure switch, G 1/4, Input pressure max. 10 bar, Control range 0.5 - 8 bar, Temp. -10 °C to 50 °C
Multifunctional service unit with 6 or 7 functions in a single device:
3/2-way valve (manually operated), filter with automatic drain valve, air ports, pressure regulator, pressure gauge, soft start valve and optional pressure switch
This combination of extremely good flow rates and a wide range of functions integrated in a single, compact unit saves valuable space and is unmatched by any similar product available in the market!
Soft starting independently of the load and easy replacement of the filter cartridge under pressure are just two of the other outstanding features of this amazing device.
Tehnični podatki in specifikacije
| Navoj | G 1/4 |
| Max. vhodni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Rang filtra [µm] | 20 |
| Min. krmilno območje [bar] | 0.5 |
| Max. krmilno območje [bar] | 8 |
| Pretok [l/min] | 2400 |

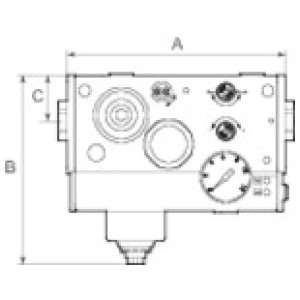

| A [mm] | 165.5 |
| B [mm] | 144.0 |
| C [mm] | 35.0 |
| Serija | ONE |
| Srednje | Pneumatics |
| Merjenje pretoka | At P2 = 6.3 bar and pressure drop Δp = 1 bar |
| IP zaščita | IP 65 |
| Operativna napetost | 24 V DC (for valves and pressure switch) |
