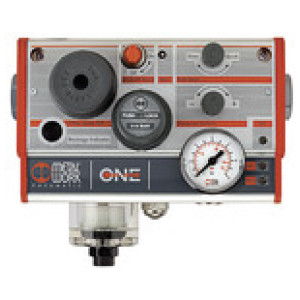

Servisna enota »ENO« s tlačnim stikalom, G 3/8 slika
Servisna enota »ENO« s tlačnim stikalom, G 3/8 slika

* slike so simbolične

Servisna enota »ENO« s tlačnim stikalom, G 3/8

SKU: 101126RIE
EAN: 4047322284820

Service unit »ONE« with pressure switch, G 3/8, Input pressure max. 10 bar, Control range 0.5 - 8 bar, Temp. -10 °C to 50 °C

Multifunctional service unit with 6 or 7 functions in a single device:

3/2-way valve (manually operated), filter with automatic drain valve, air ports, pressure regulator, pressure gauge, soft start valve and optional pressure switch

This combination of extremely good flow rates and a wide range of functions integrated in a single, compact unit saves valuable space and is unmatched by any similar product available in the market!

Soft starting independently of the load and easy replacement of the filter cartridge under pressure are just two of the other outstanding features of this amazing device.

Čas dobave 3 - 5 dni
524,75 €
ali od 13,98 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 13,98 € x 48 mesecev
  • 17,86 € x 36 mesecev
  • 25,66 € x 24 mesecev
  • 49,13 € x 12 mesecev
  • 96,10 € x 6 mesecev
  • 190,07 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Navoj Pretok [l/min] Zaloga Cena Nakup Natisni
101126RIE G 3/8 3300
Čas dobave 3 - 5 dni
524,75 € Natisni
101125RIE G 1/4 2400
Čas dobave 3 - 5 dni
524,75 € Natisni
101127RIE G 1/2 4000
Čas dobave 3 - 5 dni
529,54 € Natisni

Opis

Service unit »ONE« with pressure switch, G 3/8, Input pressure max. 10 bar, Control range 0.5 - 8 bar, Temp. -10 °C to 50 °C

Multifunctional service unit with 6 or 7 functions in a single device:

3/2-way valve (manually operated), filter with automatic drain valve, air ports, pressure regulator, pressure gauge, soft start valve and optional pressure switch

This combination of extremely good flow rates and a wide range of functions integrated in a single, compact unit saves valuable space and is unmatched by any similar product available in the market!

Soft starting independently of the load and easy replacement of the filter cartridge under pressure are just two of the other outstanding features of this amazing device.

Tehnični podatki in specifikacije

Navoj G 3/8
Max. vhodni tlak [bar] 10
Min. temperaturno območje [°C] -10
Max. temperaturno območje [°C] 50
Rang filtra [µm] 20
Min. krmilno območje [bar] 0.5
Max. krmilno območje [bar] 8
Pretok [l/min] 3300

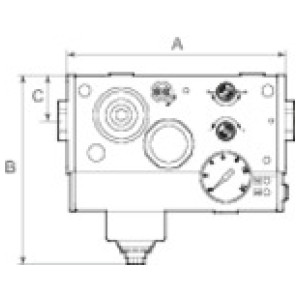

A [mm] 165.5
B [mm] 144.0
C [mm] 35.0
Serija ONE
Srednje Pneumatics
Merjenje pretoka At P2 = 6.3 bar and pressure drop Δp = 1 bar
IP zaščita IP 65
Operativna napetost 24 V DC (for valves and pressure switch)
