Servisna enota VARNOSTNA »FUTURA«, Velikost 2, G 3/8
SKU: 100257RIE
EAN: 4047322246347

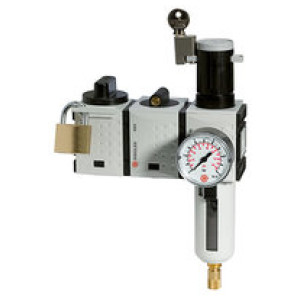

Service station SAFETY »FUTURA«, Ball valve - start-up valve - filter regulator, Size 2, G 3/8, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Obrestno financiranje
- 11,40 € x 36 mesecev
- 16,38 € x 24 mesecev
- 31,35 € x 12 mesecev
- 61,32 € x 6 mesecev
- 121,28 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Odtok kondenzata | Velikost | C [mm] | A [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100251RIE | G 3/8 | Semi-automatic | 2 | 110.0 | 189.0 | 257.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 280,14 € |  | |
| 100258RIE | G 1/2 | Fully-automatic | 2 | 110.0 | 189.0 | 273.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 334,95 € | | |
| 100260RIE | G 1 | Fully-automatic | 4 | 137.0 | 255.0 | 343.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 736,34 € | | |
| 100250RIE | G 3/8 | Semi-automatic | 1 | 96.0 | 156.0 | 226.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 192,64 € | | |
| 100252RIE | G 1/2 | Semi-automatic | 2 | 110.0 | 189.0 | 257.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 280,14 € | | |
| 100256RIE | G 3/8 | Fully-automatic | 1 | 96.0 | 156.0 | 243.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 247,16 € | | |
| 100253RIE | G 3/4 | Semi-automatic | 4 | 137.0 | 255.0 | 326.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 672,43 € | | |
| 100259RIE | G 3/4 | Fully-automatic | 4 | 137.0 | 255.0 | 343.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 736,34 € | | |
| 100255RIE | G 1/4 | Fully-automatic | 1 | 96.0 | 156.0 | 243.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 247,16 € | | |
| 100254RIE | G 1 | Semi-automatic | 4 | 137.0 | 255.0 | 326.0 | 10000 | Čas dobave: Predvidoma 3 - 5 dni | 672,43 € | | |
| 100249RIE | G 1/4 | Semi-automatic | 1 | 96.0 | 156.0 | 226.0 | 1900 | Čas dobave: Predvidoma 3 - 5 dni | 192,64 € | | |
| 100257RIE | G 3/8 | Fully-automatic | 2 | 110.0 | 189.0 | 273.0 | 4500 | Čas dobave: Predvidoma 3 - 5 dni | 334,95 € | |
Opis
Service station SAFETY »FUTURA«, Ball valve - start-up valve - filter regulator, Size 2, G 3/8, Input pressure 2.5 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Tehnični podatki in specifikacije
| Navoj | G 3/8 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 2 |
| Min. vhodni tlak [bar] | 2.5 |
| Min. temperaturno območje [°C] | -10 |
| Max. temperaturno območje [°C] | 50 |
| Ohišje | PA66 GF60 |
| Priključni navoj | Material: Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Min. krmilno območje [bar] | 2.5 |
| Max. krmilno območje [bar] | 8 |
| Zaslon manometra max. [bar] | 10 |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Odzračevalni vtič | Silencer (ball valve) |
| Pretok [l/min] | 4500 |

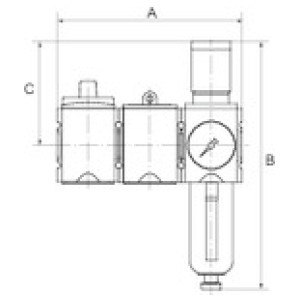

| A [mm] | 189.0 |
| B [mm] | 273.0 |
| C [mm] | 110.0 |
| Serija | FUTURA |
| Srednje | Compressed air, neutral gases |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar |
| Odtok kondenzata | Fully-automatic |
