Servisna enota VARNOSTNA »multifix«, Velikost 3, G 1/2
SKU: 100603RIE
EAN: 4047322245654

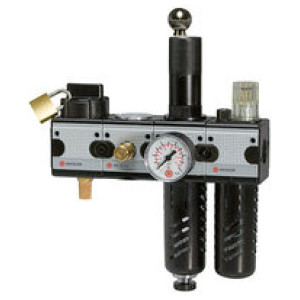

Service station SAFETY »multifix«, Ball valve - start-up valve - 2-part service unit, Size 3, G 1/2, Input pressure 2 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Povpraševanje
Merjenje pretoka: At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar
Navoj: G 1/2
Odtok kondenzata: Semi-automatic
Odzračevalni vtič: Silencer (ball valve)
Ohišje: Die-cast zinc
Serija: multifix
Srednje: Compressed air

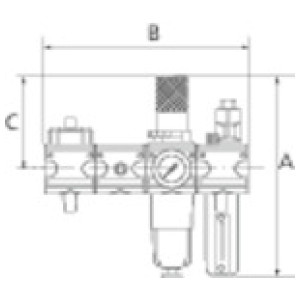

C [mm]: 122.0
B [mm]: 266.8
A [mm]: 269.3
| Šifra | Navoj | Velikost | C [mm] | B [mm] | A [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 100602RIE | G 1/4 | 1 | 94.0 | 182.8 | 219.1 | 1000 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 100604RIE | G 1 | 5 | 157.0 | 382.8 | 410.8 | 9800 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 100603RIE | G 1/2 | 3 | 122.0 | 266.8 | 269.3 | 3550 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Service station SAFETY »multifix«, Ball valve - start-up valve - 2-part service unit, Size 3, G 1/2, Input pressure 2 - 16 bar
These compressed air service unit sets, comprising a ball valve with silencer, a start-up valve and one out of a pressure regulator, filter regulator or service unit, meet even the strictest requirements for operating reliability and accident prevention!
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 3 |
| Min. vhodni tlak [bar] | 2 |
| Max. temperaturno območje [°C] | 60 |
| Ohišje | Die-cast zinc |
| Tesnilo | NBR |
| Membrane | NBR |
| Min. krmilno območje [bar] | 2 |
| Max. krmilno območje [bar] | 10 |
| Zaslon manometra max. [bar] | 16 |
| Element filtra | Cellpor (PE) |
| Rang filtra [µm] | 5 |
| Odzračevalni vtič | Silencer (ball valve) |
| Vzmet pokrova motorja | POM |
| Pretok [l/min] | 3550 |
| A [mm] | 269.3 |
| B [mm] | 266.8 |
| C [mm] | 122.0 |
| Serija | multifix |
| Srednje | Compressed air |
| Merjenje pretoka | At P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar |
| Odtok kondenzata | Semi-automatic |
