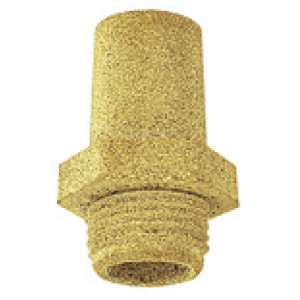

Sintrani bron Glušnik, Šesterokotni, G 1/2, AF 27
SKU: 113341RIE
EAN: 4047322101202
Sintered bronze silencer, Hexagonal, G 1/2, AF 27, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Šifra | Navoj | A [mm] | C [mm] | a/f [mm] | B [mm] | Pretok pri 6 bar [l/min] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
113342RIE | G 3/4 | 14.0 | 22.0 | 32 | 54.0 | 5800 | Čas dobave: Predvidoma 3 - 5 dni | 16,81 € | ||
113339RIE | G 1/4 | 8.0 | 12.0 | 17 | 34.0 | 1700 | Čas dobave: Predvidoma 3 - 5 dni | 5,69 € | ||
113338RIE | G 1/8 | 6.0 | 8.0 | 13 | 28.0 | 1200 | Čas dobave: Predvidoma 3 - 5 dni | 4,59 € | ||
113343RIE | G 1 | 16.0 | 28.0 | 41 | 66.0 | 7300 | Čas dobave: Predvidoma 3 - 5 dni | 22,03 € | ||
113340RIE | G 3/8 | 10.0 | 15.0 | 22 | 36.0 | 2500 | Čas dobave: Predvidoma 3 - 5 dni | 8,15 € | ||
113341RIE | G 1/2 | 12.0 | 19.0 | 27 | 44.0 | 3750 | Čas dobave: Predvidoma 3 - 5 dni | 13,98 € |
Opis
Sintered bronze silencer, Hexagonal, G 1/2, AF 27, Operating pressure 0 - 8 bar, Operating temperature -10 °C to 250 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 8 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 250 |
Material | Sintered bronze |
Raven hrupa pri 6 bar [dB] | 71 to 108 |
Navoj | G 1/2 |
a/f [mm] | 27 |
A [mm] | 12.0 |
B [mm] | 44.0 |
C [mm] | 19.0 |
Pretok pri 6 bar [l/min] | 3750 |
Velikost odprtin max. [µm] | 50 |
