* slike so simbolične
Sintrani bron Glušnik »value line«, Šesterokotni, G 3/8
SKU: 116284RIE
EAN: 4047322227049

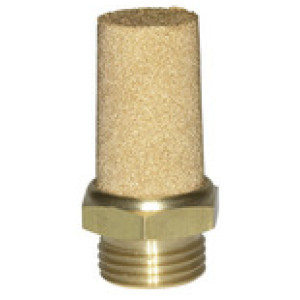

Sintered bronze silencer »value line«, Hexagonal, G 3/8, Operating pressure max. 10 bar, Operating temperature -10 °C to 200 °C
For reducing the exhaust noise generated by pneumatic equipment.

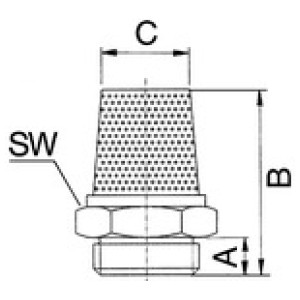

Šifra | Navoj | C [mm] | A [mm] | a/f [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
116281RIE | M5 | 4.0 | 5.0 | 9 | 20.8 | Čas dobave: Predvidoma 3 - 5 dni | 1,17 € | ||
116282RIE | G 1/8 | 8.0 | 5.5 | 13 | 22.8 | Čas dobave: Predvidoma 3 - 5 dni | 2,16 € | ||
116283RIE | G 1/4 | 10.0 | 7.0 | 17 | 33.5 | Čas dobave: Predvidoma 3 - 5 dni | 3,31 € | ||
116285RIE | G 1/2 | 18.0 | 10.0 | 24 | 48.5 | Čas dobave: Predvidoma 3 - 5 dni | 8,43 € | ||
116284RIE | G 3/8 | 14.0 | 9.0 | 22 | 41.7 | Čas dobave: Predvidoma 3 - 5 dni | 5,62 € |
Opis
Sintered bronze silencer »value line«, Hexagonal, G 3/8, Operating pressure max. 10 bar, Operating temperature -10 °C to 200 °C
For reducing the exhaust noise generated by pneumatic equipment.
Tehnični podatki in specifikacije
Max. obratovalni tlak [bar] | 10 |
Min. delovna temperatura [°C] | -10 |
Max. delovna temperatura [°C] | 200 |
Raven hrupa pri 6 bar [dB] | 80 ~ 90 dB (A) |
Navoj | G 3/8 |
a/f [mm] | 22 |
A [mm] | 9.0 |
B [mm] | 41.7 |
C [mm] | 14.0 |
