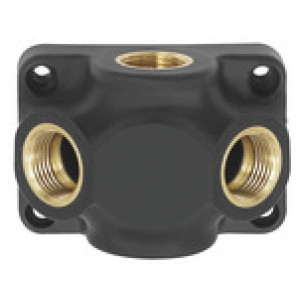

Skozi razdelilno omarico vhod/prehod G 3/4, priključek 2 x G 1/2 slika

* slike so simbolične

Skozi razdelilno omarico vhod/prehod G 3/4, priključek 2 x G 1/2

SKU: 112623RIE
EAN: 4047322401616
Through distributor, Input/Output G 3/4, Connection 2 x G 1/2, operat.pressure (air/water) max.15 bar, ambient temp. 1 °C to 50 °C

Made of plastic PA6 GF 30.

End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.

Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.

Universal distributor socket with up to 5 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection

(avoidance of existing components) of pressure reducer or maintenance device, for example.

All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.

Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions

are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.

Caution:

Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.

Čas dobave 3 - 5 dni
58,82 €
ali od 10,80 € / mesec
Izračunaj obrok
leanpay logo
Obrestno financiranje
  • 10,80 € x 6 mesecev
  • 21,36 € x 3 mesecev

Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

Primerjaj z ostalimi
Šifra Dovodni navoj Navoj skozi luknjo Priključni navoj Zaloga Cena Nakup Natisni
112622RIE G 3/4 G 3/4 1 x G 1/2
Čas dobave 3 - 5 dni
53,41 € Natisni
112621RIE G 1/2 G 1/2 3 x G 1/2
Čas dobave 3 - 5 dni
40,50 € Natisni
112620RIE G 1/2 G 1/2 2 x G 1/2
Čas dobave 3 - 5 dni
34,59 € Natisni
112624RIE G 3/4 G 3/4 3 x G 1/2
Čas dobave 3 - 5 dni
63,35 € Natisni
112619RIE G 1/2 G 1/2 1 x G 1/2
Čas dobave 3 - 5 dni
27,83 € Natisni
112623RIE G 3/4 G 3/4 2 x G 1/2
Čas dobave 3 - 5 dni
58,82 € Natisni

Opis

Through distributor, Input/Output G 3/4, Connection 2 x G 1/2, operat.pressure (air/water) max.15 bar, ambient temp. 1 °C to 50 °C

Made of plastic PA6 GF 30.

End and through distributor sockets made of high strength, glass fibre reinforced plastic (PA6 GF 30) with large range of applications.

Optionally 1 or up to 3 connection options as well as 2 thread sizes for internal and external threads (cannot be combined). For vertical carrying of media.

Universal distributor socket with up to 5 connection options. Suitable for vertical and/or horizontal carrying of media or the secure connection

(avoidance of existing components) of pressure reducer or maintenance device, for example.

All distributor sockets have a durable brass threaded insert, whose shape secures it against rotation and against axial shift due to its shape.

Suitable for media compressed air (ambient temperature -10 °C to 50 °C) or water (ambient temperature 1 °C to 50 °C). Drilling diagram dimensions

are identical for all distributor sockets, so a simpler and more flexible exchange between end, through and universal distributor sockets is ensured.

Caution:

Note that the distributor sockets should not be installed in danges zones. Danger zones are, for example, transport routes, escape routes, etc.

Tehnični podatki in specifikacije

Min. temperaturno območje [°C] 1
Max. obratovalni tlak [bar] 15
Max. temperaturno območje [°C] 50
Ohišje Glass fibre-reinforced plastic PA6 GF 30
Max. moment privijanja - medeninasta nit [Nm] 12
Max. moment privijanja - pritrdilne luknje [Nm] 4
Navoj skozi luknjo G 3/4
Dovodni navoj G 3/4
Priključni navoj 2 x G 1/2
