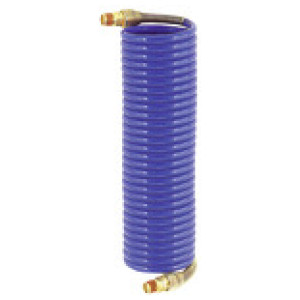

Spir. cev, prik., najlon, R 1/4, cev Ø 7.9x6.3, 5,0 m
SKU: 113403RIE
EAN: 4047322166157
Spiral hose, Fitting and kink protection spring, Nylon 11 PA, R 1/4, Hose Ø 7.9x6.3, PN at 23 °C max. 13 bar, Length 5 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Povpraševanje
Velikost cevi [mm]: 7.9x6.3
| Šifra | Navoj | Velikost cevi [mm] | Storitev dolžina max. [m] | Max. obratovalni tlak pri 23 ° C [bar] | O.D. tuljave [mm] | Število tuljav | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 137367 | R 1/8 | 4.7x3.1 | 10.0 | 22 | 38 | 144 | Čas dobave 3 - 5 dni | 90,23 € |  | |
| 136344 | R 3/8 | 11.8x9.5 | 10.0 | 11 | 140 | 30 | Čas dobave 3 - 5 dni | 147,08 € | | |
| 113406 | R 1/4 | 9.5x7.9 | 5.0 | 12 | 115 | 20 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113399 | R 1/4 | 6.3x4.8 | 2.5 | 16 | 75 | 15 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113397 | R 1/8 | 4.7x3.1 | 5.0 | 22 | 38 | 72 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 136342 | R 1/4 | 7.9x6.3 | 10.0 | 13 | 75 | 60 | Čas dobave 3 - 5 dni | 100,41 € | | |
| 113401 | R 1/4 | 6.3x4.8 | 7.5 | 16 | 75 | 45 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113409 | R 3/8 | 11.8x9.5 | 5.0 | 11 | 140 | 15 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113404 | R 1/4 | 7.9x6.3 | 7.5 | 13 | 75 | 45 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113398 | R 1/8 | 4.7x3.1 | 7.5 | 22 | 38 | 108 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 136343 | R 1/4 | 9.5x7.9 | 10.0 | 12 | 115 | 40 | Čas dobave 3 - 5 dni | 133,64 € | | |
| 113408 | R 3/8 | 11.8x9.5 | 2.5 | 11 | 140 | 8 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113400 | R 1/4 | 6.3x4.8 | 5.0 | 16 | 75 | 30 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113402 | R 1/4 | 7.9x6.3 | 2.5 | 13 | 75 | 15 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113405 | R 1/4 | 9.5x7.9 | 2.5 | 12 | 115 | 10 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113396 | R 1/8 | 4.7x3.1 | 2.5 | 22 | 38 | 36 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 137368 | R 1/4 | 6.3x4.8 | 10.0 | 16 | 75 | 60 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113410 | R 3/8 | 11.8x9.5 | 7.5 | 11 | 140 | 23 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113407 | R 1/4 | 9.5x7.9 | 7.5 | 12 | 115 | 30 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
| 113403 | R 1/4 | 7.9x6.3 | 5.0 | 13 | 75 | 30 | Čas dobave 3 - 5 dni | ? | Povpraševanje | |
Opis
Spiral hose, Fitting and kink protection spring, Nylon 11 PA, R 1/4, Hose Ø 7.9x6.3, PN at 23 °C max. 13 bar, Length 5 m
These hoses allow gaseous and liquid media to flow safely and efficiently (Air, gases, oils, greases, fuels, organic and inorganic substances).
Thanks to their small coil diameter, they are compact, easy to handle and lightweight.
Very good recoil force owing to the use of nylon 11 (PA).
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -40 |
| Max. delovna temperatura [°C] | 100 |
| Max. obratovalni tlak pri 23 ° C [bar] | 13 |
| Velikost cevi [mm] | 7.9x6.3 |
| O.D. tuljave [mm] | 75 |
| Število tuljav | 30 |
| Navoj | R 1/4 |
| Storitev dolžina max. [m] | 5.0 |
