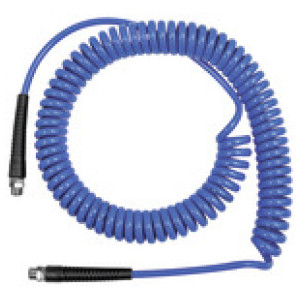

Spir. cev vlakni ojačana, PU, G 3/8, Ø 12x8, 7,5 m
SKU: 158173RIE
EAN: 4047322633192
Spiral hose, Fitting, Kink protection spring, Fibre reinforced, PU, G 3/8, Hose Ø 12x8, PN at 23 °C max. 15 bar, Length 7.5 m
Standard type or with braided reinforcements for high pressures.
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Povpraševanje
| Šifra | Navoj | Storitev dolžina max. [m] | Velikost cevi [mm] | Število tuljav | O.D. tuljave [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 158173RIE | G 3/8 | 7.5 | 12x8 | 40 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 158172RIE | G 3/8 | 6.0 | 12x8 | 31 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158171RIE | G 3/8 | 3.0 | 12x8 | 14 | 82 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158170RIE | G 1/4 | 7.5 | 10x6.5 | 47 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158168RIE | G 1/4 | 3.0 | 10x6.5 | 17 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 158169RIE | G 1/4 | 6.0 | 10x6.5 | 37 | 69 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Spiral hose, Fitting, Kink protection spring, Fibre reinforced, PU, G 3/8, Hose Ø 12x8, PN at 23 °C max. 15 bar, Length 7.5 m
Standard type or with braided reinforcements for high pressures.
These exceptionally elastic polyurethane hoses boast a recoil force similar to that of conventional polyamide spiral hose, but with less tendency to loop and significantly better resistance to abrasion.
There is consequently less danger of scratching coated or sensitive surfaces.
The hose is extremely flexible and non-kinking.
Tehnični podatki in specifikacije
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 60 |
| Max. obratovalni tlak pri 23 ° C [bar] | 15 |
| Velikost cevi [mm] | 12x8 |
| Število tuljav | 40 |
| Navoj | G 3/8 |
| Storitev dolžina max. [m] | 7.5 |
| O.D. tuljave [mm] | 82 |
