stand. cilinderdelujoč v dveh smerehbat Ø 80hod 125G 3/8
SKU: 114719RIE
EAN: 4047322312417

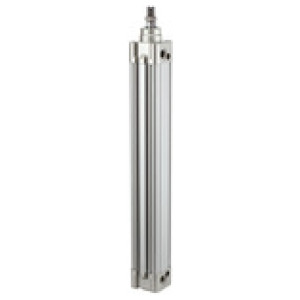

Standard cylinder »SE« ISO 15552, double-acting, Piston Ø 80, Stroke 125, G 3/8, Working pressure 1 - 10 bar, Temp. -20°C to 70°C
These cylinders are ideal for a wide range of applications owing to their robust design and ecxellent value for money.

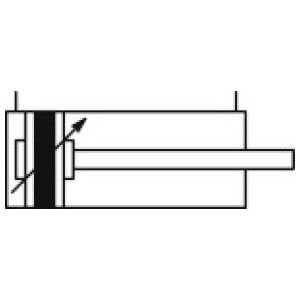

The standard type has a double-acting cylinder and features a magnetic piston as well as integrated cushioning.
The magnetic switches are mounted in T-slots on three sides of the body.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Povpraševanje
Batnica: Steel, thick-chromed
Cushioning: cushioned
ET batnice: M20x1.5
Ffunkcija: double-acting
Gewinde Kolbenstange: male piston rod
Magnet: with magnet
Ovoj: Aluminium jacket with integrated T-slots
Povezava: G 3/8
Serija: SE series
Standard: acc. to ISO 15552
Tesnilo: NBR (O-rings)
Tesnilo batnice: TPU (thermoplastic polyurethane)
| Šifra | ET batnice | Povezava | Batnica Ø [mm] | Bat Ø [mm] | Stroke [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 114596RIE | M20x1.5 | G 1/2 | 25 | 100 | 25 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 114597RIE | M20x1.5 | G 1/2 | 25 | 100 | 50 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114598RIE | M20x1.5 | G 1/2 | 25 | 100 | 75 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114599RIE | M20x1.5 | G 1/2 | 25 | 100 | 80 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114600RIE | M20x1.5 | G 1/2 | 25 | 100 | 100 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114601RIE | M20x1.5 | G 1/2 | 25 | 100 | 125 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114602RIE | M20x1.5 | G 1/2 | 25 | 100 | 150 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114603RIE | M20x1.5 | G 1/2 | 25 | 100 | 160 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114604RIE | M20x1.5 | G 1/2 | 25 | 100 | 175 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 114605RIE | M20x1.5 | G 1/2 | 25 | 100 | 200 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Standard cylinder »SE« ISO 15552, double-acting, Piston Ø 80, Stroke 125, G 3/8, Working pressure 1 - 10 bar, Temp. -20°C to 70°C
These cylinders are ideal for a wide range of applications owing to their robust design and ecxellent value for money.
The standard type has a double-acting cylinder and features a magnetic piston as well as integrated cushioning.
The magnetic switches are mounted in T-slots on three sides of the body.
Suitable for filtered, unlubricated or lubricated compressed air.
If lubrication is used, it must be continuous.
Tehnični podatki in specifikacije
| Magnet | with magnet |
| Ffunkcija | double-acting |
| Serija | SE series |
| Standard | acc. to ISO 15552 |
| Cushioning | cushioned |
| Gewinde Kolbenstange | male piston rod |
| Min. delovni tlak [bar] | 1 |
| Max. delovni tlak [bar] | 10 |
| Min. temperaturno območje [°C] | -20 |
| Max. temperaturno območje [°C] | 70 |
| Tesnilo | NBR (O-rings) |
| Ovoj | Aluminium jacket with integrated T-slots |
| Tesnilo batnice | TPU (thermoplastic polyurethane) |
| Bat Ø [mm] | 80 |
| Stroke [mm] | 125 |
| Povezava | G 3/8 |
| Batnica | Steel, thick-chromed |
| ET batnice | M20x1.5 |
| Batnica Ø [mm] | 25 |
| Bat | Aluminium |
