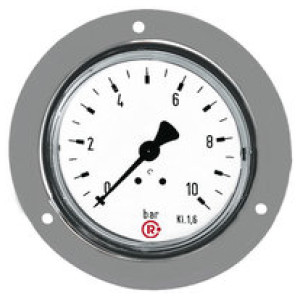

Standardni manometer, sprednji obroč, G 1/4, 0 - 10 bar, Ø 63
SKU: 101875RIE
EAN: 7636178
Standard pressure gauge, front ring, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0 - 10 bar, Ø 63
Bourdon-tube pressure gauge in standard design,
either with panel-mounting bezel made of chrome-plated or black sheet steel or
with 3-hole bezel made of chrome-plated sheet steel.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
Šifra | Merilno območje min. bar | Povezava | Spodnja/Zgornja meja območja | Stopnja rasti na območju skale - bar [bar] | Merilno območje max. bar | Premer [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
101854RIE | 0 | G 1/8 | Positive pressure | 0.2 | 6 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101872RIE | 0 | G 1/4 | Positive pressure | 0.1 | 2.5 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101858RIE | 0 | G 1/8 | Positive pressure | 2 | 40 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101853RIE | 0 | G 1/8 | Positive pressure | 0.2 | 4 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101863RIE | 0 | G 1/4 | Positive pressure | 0.2 | 4 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101864RIE | 0 | G 1/4 | Positive pressure | 0.2 | 6 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101865RIE | 0 | G 1/4 | Positive pressure | 0.5 | 10 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101876RIE | 0 | G 1/4 | Positive pressure | 0.5 | 16 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101866RIE | 0 | G 1/4 | Positive pressure | 0.5 | 16 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101852RIE | 0 | G 1/8 | Positive pressure | 0.1 | 2.5 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101860RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101850RIE | 0 | G 1/8 | Positive pressure | 0.05 | 1 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101874RIE | 0 | G 1/4 | Positive pressure | 0.2 | 6 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101859RIE | -1 | G 1/4 | Vacuum | 0.05 | 0 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101856RIE | 0 | G 1/8 | Positive pressure | 0.5 | 16 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101857RIE | 0 | G 1/8 | Positive pressure | 1 | 25 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101873RIE | 0 | G 1/4 | Positive pressure | 0.2 | 4 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101855RIE | 0 | G 1/8 | Positive pressure | 0.5 | 10 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101878RIE | 0 | G 1/4 | Positive pressure | 2 | 40 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101877RIE | 0 | G 1/4 | Positive pressure | 1 | 25 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101871RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1.6 | 63 | Na zalogi | 26,45 € | ||
101867RIE | 0 | G 1/4 | Positive pressure | 1 | 25 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101849RIE | -1 | G 1/8 | Vacuum | 0.05 | 0 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101868RIE | 0 | G 1/4 | Positive pressure | 2 | 40 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101851RIE | 0 | G 1/8 | Positive pressure | 0.05 | 1.6 | 40 | Čas dobave: Predvidoma 3 - 5 dni | 25,23 € | ||
101861RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1.6 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101869RIE | -1 | G 1/4 | Vacuum | 0.05 | 0 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101870RIE | 0 | G 1/4 | Positive pressure | 0.05 | 1 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101862RIE | 0 | G 1/4 | Positive pressure | 0.1 | 2.5 | 50 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € | ||
101875RIE | 0 | G 1/4 | Positive pressure | 0.5 | 10 | 63 | Čas dobave: Predvidoma 3 - 5 dni | 26,45 € |
Opis
Standard pressure gauge, front ring, Connection, rear, centric, G 1/4, Goods class 1.6, Measurement range 0 - 10 bar, Ø 63
Bourdon-tube pressure gauge in standard design,
either with panel-mounting bezel made of chrome-plated or black sheet steel or
with 3-hole bezel made of chrome-plated sheet steel.
Suitable for gaseous or liquid media which do not corrode copper alloy,
do not have high viscosity and do not crystallise.
Tehnični podatki in specifikacije
Povezava | G 1/4 |
Položaj povezave | rear, centrical |
Premer [mm] | 63 |
Vrsta | 111.12 |
Razred točnosti | 1.6 |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 60 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 60 |
Ohišje | Sheet steel |
Merilni element | Copper alloy |
Premikanje | Copper alloy |
Prednje steklo | Transparent plastic |
Merilno območje max. bar | 10 |
Stopnja rasti na območju skale - bar [bar] | 0.5 |
Spodnja/Zgornja meja območja | Positive pressure |
Material Prozessanschluss | Copper alloy |
