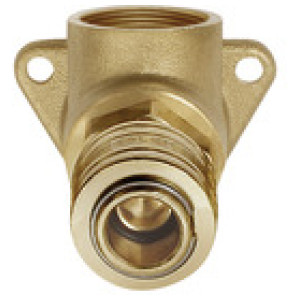

Stropni nosilec s hN.N.rim priključkomI.D. 7.2G 3/8 N.N.
SKU: 107273RIE
EAN: 4047322368216
Ceiling bracket with quick-connect coupling I.D. 7.2, Bright brass, G 3/8 IT, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Šifra | Povezava | Spojke | Sestava distributerja | Premer [mm] | Višina [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|
107273RIE | G 3/8 IT | DN 7.2, brass with a bare metal surface, G 3/8 ET | 2 x G 3/8 IT | 39.0 | 40.0 | Čas dobave: Predvidoma 3 - 5 dni | 15,80 € | | |
107274RIE | G 1/2 IT | DN 7.2, brass with a bare metal surface, G 1/2 ET | 2 x G 1/2 IT | 45.0 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,42 € | |
Opis
Ceiling bracket with quick-connect coupling I.D. 7.2, Bright brass, G 3/8 IT, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C
1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2.
Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Tehnični podatki in specifikacije
Povezava | G 3/8 IT |
Max. obratovalni tlak [bar] | 35 |
Sestava distributerja | 2 x G 3/8 IT |
Spojke | DN 7.2, brass with a bare metal surface, G 3/8 ET |
Ohišje | Brass with a bare metal surface |
Tesnilo | Industrial adhesives, medium strength |
Min. temperatura medija [°C] | -20 |
Max. temperatura medija [°C] | 100 |
Min. sobna temperatura [°C] | -20 |
Max. sobna temperatura [°C] | 100 |
Varovaka | Industrial adhesives, medium strength |
Premer [mm] | 39.0 |
Višina [mm] | 40.0 |
