T-multi-dist. Blue serija", 6-stransko, vrt., G 1/8
SKU: 109766RIE
EAN: 4047322200394

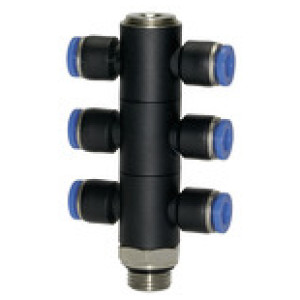

T-multi-distributor »Blue Series«, 6-fold, rotating, G 1/8 o., for hose exterior Ø 6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
10,43 €

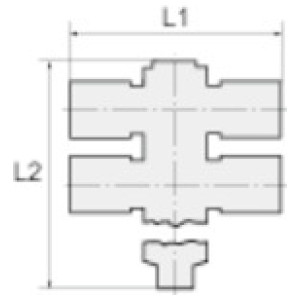

| Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 135717RIE | G 1/2 | 8 | 12 | 24 | 70.8 | 85.7 | Čas dobave: Predvidoma 3 - 5 dni | 32,00 € |  | |
| 109773RIE | G 3/8 | 8 | 10 | 20 | 63.5 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 23,99 € | | |
| 135716RIE | G 1/4 | 6 | 4 | 17 | 49.0 | 79.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,02 € | | |
| 109765RIE | G 1/8 | 4 | 4 | 14 | 45.0 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 8,94 € | | |
| 109769RIE | G 1/4 | 6 | 8 | 17 | 52.5 | 80.5 | Čas dobave: Predvidoma 3 - 5 dni | 17,67 € | | |
| 109767RIE | G 1/8 | 4 | 8 | 14 | 48.5 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,69 € | | |
| 109771RIE | G 1/4 | 6 | 12 | 17 | 61.2 | 80.5 | Čas dobave: Predvidoma 3 - 5 dni | 22,70 € | | |
| 109774RIE | G 3/8 | 8 | 12 | 20 | 64.9 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 25,78 € | | |
| 109772RIE | G 3/8 | 8 | 8 | 20 | 56.7 | 82.2 | Čas dobave: Predvidoma 3 - 5 dni | 20,90 € | | |
| 109768RIE | G 1/4 | 6 | 6 | 17 | 46.7 | 80.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,69 € | | |
| 109770RIE | G 1/4 | 6 | 10 | 17 | 59.6 | 80.5 | Čas dobave: Predvidoma 3 - 5 dni | 21,07 € | | |
| 109766RIE | G 1/8 | 4 | 6 | 14 | 42.6 | 59.1 | Čas dobave: Predvidoma 3 - 5 dni | 10,43 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 6 |
| L1 [mm] | 42.6 |
| L2 [mm] | 59.1 |
| a/f [mm] | 14 |
| Šestkotna glava vtičnice [mm] | 4 |
| Material | Plastic and nickel-plated brass |
