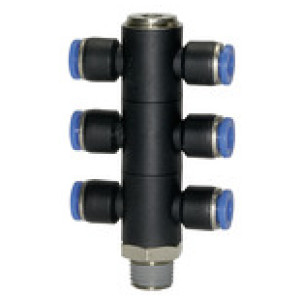

T-multi-dist. Blue serija", 6-stransko, vrt., R 1/8
SKU: 109775RIE
EAN: 4047322199629
T-multi-distributor »Blue Series«, 6-fold, rotating, R 1/8 o., for hose exterior Ø 4 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
8,94 €

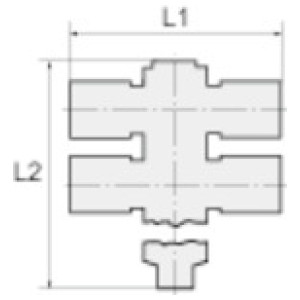

Šifra | Navoj | Šestkotna glava vtičnice [mm] | Za cevi O.D. [mm] | a/f [mm] | L1 [mm] | L2 [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|
109779RIE | R 1/4 | 6 | 8 | 17 | 52.0 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 17,67 € | ||
109783RIE | R 3/8 | 8 | 10 | 20 | 63.8 | 83.7 | Čas dobave: Predvidoma 3 - 5 dni | 23,99 € | ||
135718RIE | R 1/4 | 6 | 4 | 17 | 49.0 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 14,02 € | ||
109778RIE | R 1/4 | 6 | 6 | 17 | 47.0 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 16,69 € | ||
109780RIE | R 1/4 | 6 | 10 | 17 | 59.8 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 21,07 € | ||
109776RIE | R 1/8 | 4 | 6 | 14 | 43.0 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 10,43 € | ||
135719RIE | R 1/2 | 8 | 12 | 24 | 70.8 | 88.2 | Čas dobave: Predvidoma 3 - 5 dni | 32,00 € | ||
109781RIE | R 1/4 | 6 | 12 | 17 | 61.6 | 81.0 | Čas dobave: Predvidoma 3 - 5 dni | 22,70 € | ||
109784RIE | R 3/8 | 8 | 12 | 20 | 65.6 | 83.7 | Čas dobave: Predvidoma 3 - 5 dni | 25,78 € | ||
109777RIE | R 1/8 | 4 | 8 | 14 | 49.0 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 10,69 € | ||
109782RIE | R 3/8 | 8 | 8 | 20 | 57.0 | 83.7 | Čas dobave: Predvidoma 3 - 5 dni | 20,90 € | ||
109775RIE | R 1/8 | 4 | 4 | 14 | 45.0 | 59.6 | Čas dobave: Predvidoma 3 - 5 dni | 8,94 € |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
Serija | Blue series |
Max. working pressure short term [bar] | 15 |
Min. delovni tlak [bar] | -0.95 |
Max. delovni tlak [bar] | 10 |
Max. temperaturno območje [°C] | 80 |
Min. temperaturno območje [°C] | -20 |
Tesnilo | NBR |
Srednje | Compressed air, neutral and safe gases and liquids |
Priporočena cev | PU or PA (nylon) |
Rokav | Plastic |
Navoj | R 1/8 |
Za cevi O.D. [mm] | 4 |
L1 [mm] | 45.0 |
L2 [mm] | 59.6 |
a/f [mm] | 14 |
Šestkotna glava vtičnice [mm] | 4 |
Material | Plastic and nickel-plated brass |
