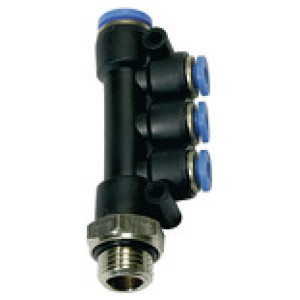

T-multi-distributer »Blue serija«, ki se vrti, G 1/8 o.
SKU: 135703RIE
EAN: 4047322498562
T-multi-distributor »Blue Series«, rotating, G 1/8 o., for hose exterior Ø 4x6 mm, pmax short term 15 barPush-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Čas dobave: Predvidoma 3 - 5 dni
11,43 €
| Šifra | Navoj | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|
| 109732RIE | G 3/8 | 1x10 / 3x8 | 20 | 24.0 | 91.1 | Čas dobave: Predvidoma 3 - 5 dni | 12,88 € |  | |
| 109731RIE | G 3/8 | 1x8 / 3x6 | 17 | 20.6 | 70.9 | Čas dobave: Predvidoma 3 - 5 dni | 15,21 € | | |
| 109728RIE | G 1/4 | 1x6 / 3x4 | 14 | 19.6 | 65.2 | Čas dobave: Predvidoma 3 - 5 dni | 11,83 € | | |
| 135707RIE | G 1/4 | 4x8 | 17 | 22.3 | 89.5 | Čas dobave: Predvidoma 3 - 5 dni | 14,13 € | | |
| 109729RIE | G 1/4 | 1x8 / 3x4 | 17 | 20.0 | 69.9 | Čas dobave: Predvidoma 3 - 5 dni | 10,59 € | | |
| 109730RIE | G 1/4 | 1x8 / 3x6 | 17 | 20.0 | 71.4 | Čas dobave: Predvidoma 3 - 5 dni | 10,93 € | | |
| 109727RIE | G 1/8 | 1x6 / 3x4 | 14 | 19.0 | 64.3 | Čas dobave: Predvidoma 3 - 5 dni | 8,33 € | | |
| 135702RIE | G 1/8 | 4x4 | 12 | 16.9 | 64.2 | Čas dobave: Predvidoma 3 - 5 dni | 9,75 € | | |
| 135706RIE | G 1/4 | 4x6 | 14 | 18.5 | 69.6 | Čas dobave: Predvidoma 3 - 5 dni | 12,86 € | | |
| 135704RIE | G 1/8 | 4x8 | 14 | 22.3 | 87.5 | Čas dobave: Predvidoma 3 - 5 dni | 13,08 € | | |
| 135709RIE | G 3/8 | 4x8 | 17 | 22.3 | 90.5 | Čas dobave: Predvidoma 3 - 5 dni | 16,60 € | | |
| 135708RIE | G 3/8 | 4x6 | 14 | 18.5 | 71.1 | Čas dobave: Predvidoma 3 - 5 dni | 15,16 € | | |
| 135705RIE | G 1/4 | 4x4 | 12 | 16.9 | 65.5 | Čas dobave: Predvidoma 3 - 5 dni | 11,83 € | | |
| 135703RIE | G 1/8 | 4x6 | 14 | 18.5 | 68.1 | Čas dobave: Predvidoma 3 - 5 dni | 11,43 € | |
Opis
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic and copper.
Tehnični podatki in specifikacije
| Serija | Blue series |
| Max. working pressure short term [bar] | 15 |
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 80 |
| Min. temperaturno območje [°C] | -20 |
| Tesnilo | NBR |
| Srednje | Compressed air, neutral and safe gases and liquids |
| Priporočena cev | PU or PA (nylon) |
| Rokav | Plastic |
| Navoj | G 1/8 |
| Za cevi O.D. [mm] | 4x6 |
| L1 [mm] | 68.1 |
| L2 [mm] | 18.5 |
| a/f [mm] | 14 |
| Material | Plastic and nickel-plated brass |
