T navoj. prik. M R 3/8 , zun. premer Ø 12, galvan.jeklo
SKU: 112190RIE
EAN: 4047322166584

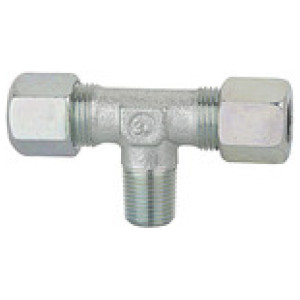

T screw-in fitting, R 3/8 o., Pipe exterior Ø 12 mm, PN max. 315 bar, AF1 22, AF2 17, galvanised steel
Male branch tee, conical male thread acc. to ISO 7-1, light type
Čas dobave: Predvidoma 3 - 5 dni
23,40 €
| Šifra | Navoj | O.D. cev [mm] | a/f 2 [mm] | a/f 1 [mm] | L2 [mm] | L1 [mm] | PN [bar] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 112191RIE | R 1/2 | 15 | 19 | 27 | 34.0 | 36.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 35,25 € |  | |
| 112190RIE | R 3/8 | 12 | 17 | 22 | 28.0 | 32.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 23,40 € | | |
| 112188RIE | R 1/4 | 8 | 12 | 17 | 26.0 | 29.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 17,84 € | | |
| 112193RIE | R 3/4 | 22 | 27 | 36 | 42.0 | 44.0 | 160 | Čas dobave: Predvidoma 3 - 5 dni | 70,17 € | | |
| 112192RIE | R 1/2 | 18 | 24 | 32 | 36.0 | 40.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 44,14 € | | |
| 112189RIE | R 1/4 | 10 | 14 | 19 | 27.0 | 30.0 | 315 | Čas dobave: Predvidoma 3 - 5 dni | 20,74 € | |
Opis
T screw-in fitting, R 3/8 o., Pipe exterior Ø 12 mm, PN max. 315 bar, AF1 22, AF2 17, galvanised steel
Male branch tee, conical male thread acc. to ISO 7-1, light type

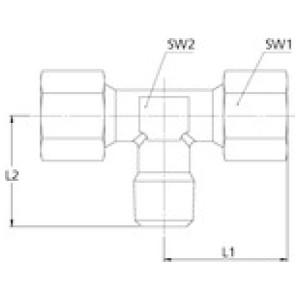

Tehnični podatki in specifikacije
| Material | Galvanised steel (DIN 2353) |
| Navoj | R 3/8 |
| O.D. cev [mm] | 12 |
| L1 [mm] | 32.0 |
| L2 [mm] | 28.0 |
| a/f 1 [mm] | 22 |
| a/f 2 [mm] | 17 |
| PN [bar] | 315 |
