T-prik. value line, vrt., G 1/4 , za zun. Ø 10 mm
SKU: 116213RIE
EAN: 4047322183888

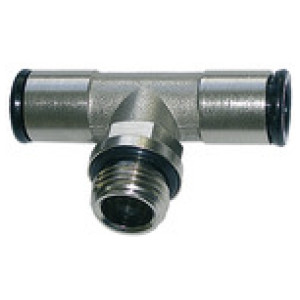

T-screw-in fitting »value line«, rotating, G 1/4 o., for hose exterior Ø 10, Working pressure -0.98 to 16 bar,nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Povpraševanje
Material: Nickel-plated brass
Navoj: G 1/4
Priporočena cev: PA, PU
Rokav: Black nickel-plated
Serija: value line
Tesnilo: NBR, silicone-free
Vpenjalo: Stainless steel AISI 316
| Šifra | Navoj | Rokav | Za cevi O.D. [mm] | a/f [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|
| 116218RIE | G 1/8 | Hostaform | 8 | 13 | 20.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 116217RIE | G 1/8 | Hostaform | 6 | 13 | 18.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116215RIE | G 1/4 | Hostaform | 8 | 13 | 22.5 | 46.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116216RIE | G 1/8 | Hostaform | 4 | 13 | 18.5 | 35.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116214RIE | G 1/4 | Hostaform | 6 | 13 | 22.5 | 42.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 116213RIE | G 1/4 | Black nickel-plated | 10 | 16 | 24.5 | 51.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
T-screw-in fitting »value line«, rotating, G 1/4 o., for hose exterior Ø 10, Working pressure -0.98 to 16 bar,nickel-plated brass
Low-priced yet very high-quality series of push-in fittings made of nickel-plated brass.
Compact, space-saving, lightweight design. An O-ring in the fillet at the end of the thread guarantees a tight connection for all male thread parts, even on rough surfaces.
Tehnični podatki in specifikacije
| Serija | value line |
| Min. delovni tlak [bar] | -0.98 |
| Max. delovni tlak [bar] | 16 |
| Min. delovna temperatura [°C] | -20 |
| Max. delovna temperatura [°C] | 80 |
| Tesnilo | NBR, silicone-free |
| Priporočena cev | PA, PU |
| Vpenjalo | Stainless steel AISI 316 |
| Rokav | Black nickel-plated |
| Navoj | G 1/4 |
| Za cevi O.D. [mm] | 10 |
| L1 [mm] | 51.0 |
| L2 [mm] | 24.5 |
| a/f [mm] | 16 |
| Material | Nickel-plated brass |
