* slike so simbolične

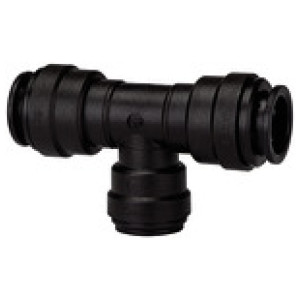

T-reducir prik. POM, zun. Ø1 22 mm / Ø2 15 mm
SKU: 110327RIE
EAN: 4047322220491
T-reducer connector POM, for hose exterior Ø1 22 mm, for hose exterior Ø2 15 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.

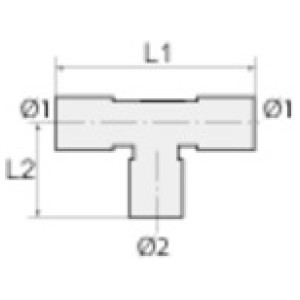

| Šifra | Za cevi O.D. 1 [mm] | L2 [mm] | L1 [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 110327RIE | 22 | 41.6 | 90.6 | Čas dobave: Predvidoma 3 - 5 dni | 18,03 € |  | |
| 110326RIE | 18 | 37.9 | 84.5 | Čas dobave: Predvidoma 3 - 5 dni | 18,03 € | |
Opis
T-reducer connector POM, for hose exterior Ø1 22 mm, for hose exterior Ø2 15 mm, working pressure -0.95 to 10 bar
Lightweight, push-in fittings distinguished by high strength, toughness, resistance to abrasion and impact resistance - ideal for a wide range of applications.
All our push-in fittings made of POM have the following approvals:
drinking water DVGW, KTW, FDA and NSF.
Plastic and metal tubes are connected together quickly and easily. Suitable for compressed air or liquids, with good resistance to a large number of chemicals.
Tehnični podatki in specifikacije
| Min. delovni tlak [bar] | -0.95 |
| Max. delovni tlak [bar] | 10 |
| Min. delovna temperatura v zraku [°C] | -20 |
| Max. delovna temperatura v zraku [°C] | 65 |
| Min. delovna temperatura v vodi [°C] | 1 |
| Max. delovna temperatura v vodi [°C] | 70 |
| Za cevi O.D. 1 [mm] | 22 |
| Za cevi O.D. 2 [mm] | 15 |
| L1 [mm] | 90.6 |
| L2 [mm] | 41.6 |
| Material | Acetal polymer (POM) |
