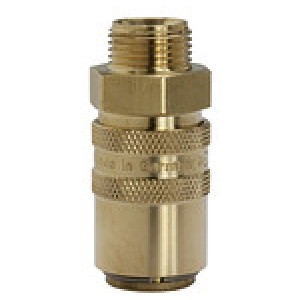

Temperaturna sklopka DN 9Z.N.zaporni ventil,Med.G 3/8 ravno
SKU: 107960RIE
EAN: 4047322258777
Tempered coupling DN 9, Exterior thread, Blocking valve, Brass, G 3/8 straight, Operating pressure max. 15 bar
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Temperaturna sklopka DN 9Z.N.zaporni ventil,Med.G 3/8 ravno
Krogla: Stainless steel
Material: Brass 2.0401
Priključni navoj: G 3/8 straight
Pritrdilni obroč: Stainless steel
Srednje: Air, water, oil, vacuum
Tesnilo: FPM (PTFE coated)
Vzmet: Stainless steel
Material: Brass 2.0401
Priključni navoj: G 3/8 straight
Pritrdilni obroč: Stainless steel
Srednje: Air, water, oil, vacuum
Tesnilo: FPM (PTFE coated)
Vzmet: Stainless steel
| Šifra | Priključni navoj | a/f [mm] | Dolžina [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|
| 107962RIE | G 3/8 45° | 22 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 107965RIE | M16x1.5 90° | 22 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107961RIE | G 1/2 straight | 21 | 53.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107959RIE | M16x1.5 straight | 22 | 52.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107964RIE | G 3/8 90° | 22 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107963RIE | M16x1.5 45° | 22 | 54.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 107960RIE | G 3/8 straight | 22 | 53.5 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Tempered coupling DN 9, Exterior thread, Blocking valve, Brass, G 3/8 straight, Operating pressure max. 15 bar
Compatible with HASCO Z 8 system.
For temperature control applications involving hot or cold water or heat transfer oil.
Optionally with free passage, one or both sides sealing.
Female-threaded couplings and plugs with female-threaded PTFE seal.
Tehnični podatki in specifikacije
| Priključni navoj | G 3/8 straight |
| Max. obratovalni tlak [bar] | 15 |
| Srednje | Air, water, oil, vacuum |
| Material | Brass 2.0401 |
| Min. temperatura medija [°C] | -20 |
| Max. temperatura medija [°C] | 160 |
| Min. sobna temperatura [°C] | -20 |
| Max. sobna temperatura [°C] | 160 |
| Tesnilo | FPM (PTFE coated) |
| Krogla | Stainless steel |
| Vzmet | Stainless steel |
| Pritrdilni obroč | Stainless steel |
| Dolžina [mm] | 53.5 |
| a/f [mm] | 22 |
