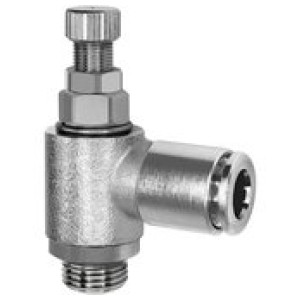

Throttle check valve, discharge, G 1/8, plug-in connector 4

SKU: 116799RIE
EAN: 4047322716338

Throttle check valve, discharge (C), knurled screw, G 1/8, plug-in 4, rotating, 0 to 10 bar, -20 °C to 80 °C, nickel-plated brass

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi

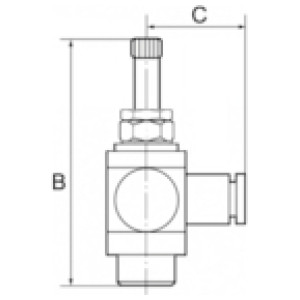

Šifra Navoj a/f [mm] Za cevi [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
116744RIE M5 6 6 21.5 39.4
Ni na zalogi
? Povpraševanje Natisni
116833RIE G 3/8 14 8 26.5 63.5
Ni na zalogi
? Povpraševanje Natisni
116820RIE G 1/4 10 6 24.0 50.8
Ni na zalogi
? Povpraševanje Natisni
116810RIE G 1/8 9 8 23.5 41.9
Ni na zalogi
? Povpraševanje Natisni
116799RIE G 1/8 9 4 20.5 41.9
Ni na zalogi
? Povpraševanje Natisni
116834RIE G 3/8 14 10 29.0 63.5
Ni na zalogi
? Povpraševanje Natisni
116739RIE M5 6 4 18.5 39.4
Ni na zalogi
? Povpraševanje Natisni
116831RIE G 1/4 10 8 24.5 50.8
Ni na zalogi
? Povpraševanje Natisni
116832RIE G 1/4 10 10 27.0 50.8
Ni na zalogi
? Povpraševanje Natisni
116807RIE G 1/8 9 6 22.5 41.9
Ni na zalogi
? Povpraševanje Natisni

Opis

Throttle check valve, discharge (C), knurled screw, G 1/8, plug-in 4, rotating, 0 to 10 bar, -20 °C to 80 °C, nickel-plated brass

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Navoj G 1/8
Za cevi [mm] 4
B [mm] 41.9
C [mm] 20.5
a/f [mm] 9
Telo Nickel-plated brass
Silicone-free Yes

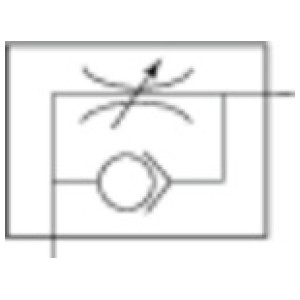

Ffunkcija Discharge throttle (C)
Vrsta povezave Plug-in connector
Design rotating
