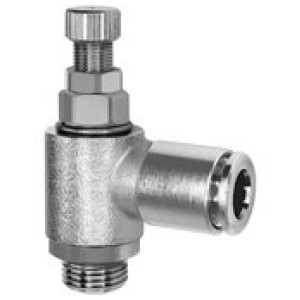

Throttle check valve, supply air, G 1/8, plug-in connector 6 slika
Throttle check valve, supply air, G 1/8, plug-in connector 6 slika
Throttle check valve, supply air, G 1/8, plug-in connector 6 slika

* slike so simbolične

Throttle check valve, supply air, G 1/8, plug-in connector 6

SKU: 113741RIE
EAN: 4047322716147

Throttle check valve, supply air (V), knurled screw, G 1/8, plug-in 6, rotating, 0 to 10 bar, -20 °C to 80 °C, nickel-plated brass

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Ni na zalogi
Pošljite povpraševanje
Primerjaj z ostalimi

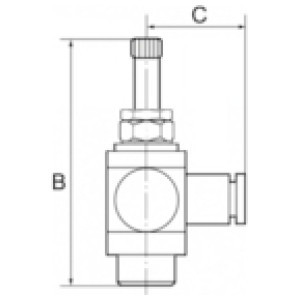

Šifra Navoj Za cevi [mm] a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
113728RIE M5 4 6 18.5 39.4
Ni na zalogi
? Povpraševanje Natisni
114526RIE G 1/4 10 10 27.0 50.8
Ni na zalogi
? Povpraševanje Natisni
113730RIE M5 6 6 21.5 39.4
Ni na zalogi
? Povpraševanje Natisni
115701RIE G 3/8 10 14 29.0 63.5
Ni na zalogi
? Povpraševanje Natisni
113809RIE G 1/4 8 10 24.5 50.8
Ni na zalogi
? Povpraševanje Natisni
113743RIE G 1/8 8 9 23.5 41.9
Ni na zalogi
? Povpraševanje Natisni
113790RIE G 1/4 6 10 24.0 50.8
Ni na zalogi
? Povpraševanje Natisni
115700RIE G 3/8 8 14 26.5 63.5
Ni na zalogi
? Povpraševanje Natisni
113739RIE G 1/8 4 9 20.5 41.9
Ni na zalogi
? Povpraševanje Natisni
113741RIE G 1/8 6 9 22.5 41.9
Ni na zalogi
? Povpraševanje Natisni

Opis

Throttle check valve, supply air (V), knurled screw, G 1/8, plug-in 6, rotating, 0 to 10 bar, -20 °C to 80 °C, nickel-plated brass

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Navoj G 1/8
Za cevi [mm] 6
B [mm] 41.9
C [mm] 22.5
a/f [mm] 9
Telo Nickel-plated brass
Silicone-free Yes

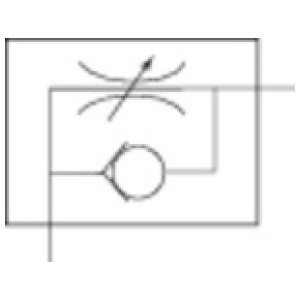

Ffunkcija Supply air throttle (V)
Vrsta povezave Plug-in connector
Design rotating
