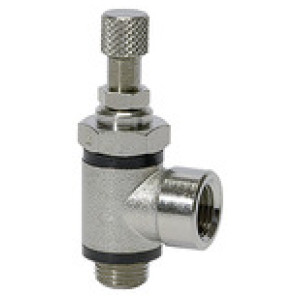

Throttle valve, both directions throttling (B) G 1/4 IT, G 1/4 slika
Throttle valve, both directions throttling (B) G 1/4 IT, G 1/4 slika
Throttle valve, both directions throttling (B) G 1/4 IT, G 1/4 slika

* slike so simbolične

Throttle valve, both directions throttling (B) G 1/4 IT, G 1/4

SKU: 106990RIE
EAN: 4047322180498

Throttle valve, both directions throttling (B) threaded connection, G 1/4 IT, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Čas dobave: Predvidoma 3 - 5 dni
18,48 €
Primerjaj z ostalimi
Šifra Navoj Povezava a/f [mm] C [mm] B [mm] Zaloga Cena Nakup Natisni
106992RIE G 1/2 G 1/2 female thread 26 32.0 81.0
Čas dobave: Predvidoma 3 - 5 dni
42,64 € Natisni
106991RIE G 3/8 G 3/8 female thread 20 26.0 63.0
Čas dobave: Predvidoma 3 - 5 dni
29,34 € Natisni
106988RIE M5 M5 female thread 8 11.5 38.9
Čas dobave: Predvidoma 3 - 5 dni
16,36 € Natisni
106989RIE G 1/8 G 1/8 female thread 14 16.0 42.0
Čas dobave: Predvidoma 3 - 5 dni
15,56 € Natisni
106990RIE G 1/4 G 1/4 female thread 17 22.0 51.0
Čas dobave: Predvidoma 3 - 5 dni
18,48 € Natisni

Opis

Throttle valve, both directions throttling (B) threaded connection, G 1/4 IT, G 1/4, PN max. 10 bar, Temperature -20 °C to 80 °C

For throttling flow rates and regulating the piston speed of cylinders. Small dimensions, ideal for tight spaces. To be screwed directly into the valve or cylinder. The set flow rate can be locked via the lock nut in the version with knurled screw. The variants in banjo bolt construction can be rotated during assembly and are fixed after tightening. The variants with plug-in connector, rotated can also be rotated freely after assembly. The seals and lubricants used are silicone-free.

Tehnični podatki in specifikacije

Max. obratovalni tlak [bar] 10
Min. temperaturno območje [°C] -20
Max. temperaturno območje [°C] 80
Tesnilo NBR
Zarobljena tesnila Polyamide, glass fibre-reinforced (only parts in banjo bolt construction)
Navoj G 1/4
Povezava G 1/4 female thread

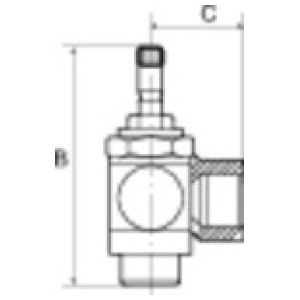

B [mm] 51.0
C [mm] 22.0
a/f [mm] 17
Telo Nickel-plated brass
Silicone-free Yes

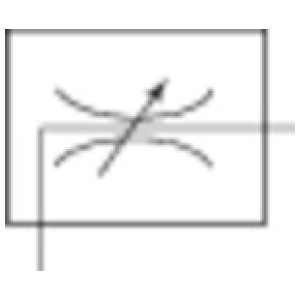

Ffunkcija Both directions throttling (B)
Vrsta povezave Screw connection
Design Banjo bolt construction
