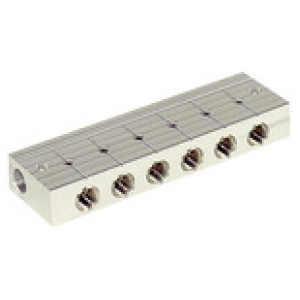

Tirnica z razdelilnikom, 6 integriranih krogelnih ventilov G 3/8
SKU: 103578RIE
EAN: 4047322170024
Distributor strip, 6 integrated ball valves, Die-cast aluminium, PN max 10 bar rough vacuum, Temp. -10°C to 100°C, In/output G 3/8
Distributor and isolator block for machines and installations where it is necessary to close individual circuits.
This block contains 6, 8 or 10 ball valves that can be adjusted using a screwdriver.
Čas dobave: Predvidoma 3 - 5 dni
Povpraševanje
Tirnica z razdelilnikom, 6 integriranih krogelnih ventilov G 3/8
Aplikacije: Air, rough vacuum
Krogla: Ms 58, chrome-plated
Navoj, izhod: G 3/8
Navoj, krogelni ventil: G 1/4
Navoj, vhod: G 3/8
Ohišje: Die-cast aluminium
Steblo: Ms 58, chrome-plated
Montaža: 2 mounting holes in housing (screw size M5)
L [mm]: 175.0
Krogla: Ms 58, chrome-plated
Navoj, izhod: G 3/8
Navoj, krogelni ventil: G 1/4
Navoj, vhod: G 3/8
Ohišje: Die-cast aluminium
Steblo: Ms 58, chrome-plated
Montaža: 2 mounting holes in housing (screw size M5)
L [mm]: 175.0
| Šifra | Število krogelnih ventilov | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 103579RIE | 8 | 225.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje |  |
| 103578RIE | 6 | 175.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
| 103580RIE | 10 | 275.0 | Čas dobave: Predvidoma 3 - 5 dni | Povpraševanje | Povpraševanje | |
Opis
Distributor strip, 6 integrated ball valves, Die-cast aluminium, PN max 10 bar rough vacuum, Temp. -10°C to 100°C, In/output G 3/8
Distributor and isolator block for machines and installations where it is necessary to close individual circuits.
This block contains 6, 8 or 10 ball valves that can be adjusted using a screwdriver.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 100 |
| Aplikacije | Air, rough vacuum |
| Navoj, vhod | G 3/8 |
| Navoj, izhod | G 3/8 |
| Navoj, krogelni ventil | G 1/4 |
| Montaža | 2 mounting holes in housing (screw size M5) |
| Ohišje | Die-cast aluminium |
| Krogla | Ms 58, chrome-plated |
| Steblo | Ms 58, chrome-plated |
| Krogelno tesnilo | PTFE |

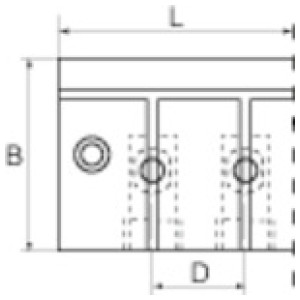

| L [mm] | 175.0 |
| B [mm] | 52.0 |
| D [mm] | 25.0 |
| Število krogelnih ventilov | 6 |
| O-tesnilo | NBR |
