Tirnica z razdelilnikom, 8 integriranih krogelnih ventilov G 3/8
SKU: 103579RIE
EAN: 4047322297196

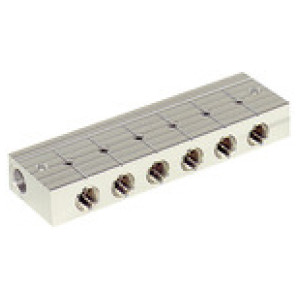

Distributor strip, 8 integrated ball valves, Die-cast aluminium, PN max 10 bar rough vacuum, Temp. -10°C to 100°C, In/output G 3/8
Distributor and isolator block for machines and installations where it is necessary to close individual circuits.
This block contains 6, 8 or 10 ball valves that can be adjusted using a screwdriver.
Obrestno financiranje
- 10,28 € x 36 mesecev
- 14,76 € x 24 mesecev
- 28,26 € x 12 mesecev
- 55,28 € x 6 mesecev
- 109,33 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Število krogelnih ventilov | L [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|
| 103579RIE | 8 | 225.0 | Čas dobave 3 - 5 dni | 302,01 € |  | |
| 103578RIE | 6 | 175.0 | Čas dobave 3 - 5 dni | 202,54 € | | |
| 103580RIE | 10 | 275.0 | Čas dobave 3 - 5 dni | 394,41 € | |
Opis
Distributor strip, 8 integrated ball valves, Die-cast aluminium, PN max 10 bar rough vacuum, Temp. -10°C to 100°C, In/output G 3/8
Distributor and isolator block for machines and installations where it is necessary to close individual circuits.
This block contains 6, 8 or 10 ball valves that can be adjusted using a screwdriver.
Tehnični podatki in specifikacije
| Min. temperaturno območje [°C] | -10 |
| Max. obratovalni tlak [bar] | 10 |
| Max. temperaturno območje [°C] | 100 |
| Aplikacije | Air, rough vacuum |
| Navoj, vhod | G 3/8 |
| Navoj, izhod | G 3/8 |
| Navoj, krogelni ventil | G 1/4 |
| Montaža | 2 mounting holes in housing (screw size M5) |
| Ohišje | Die-cast aluminium |
| Krogla | Ms 58, chrome-plated |
| Steblo | Ms 58, chrome-plated |
| Krogelno tesnilo | PTFE |

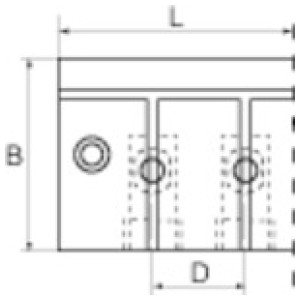

| L [mm] | 225.0 |
| B [mm] | 52.0 |
| D [mm] | 25.0 |
| Število krogelnih ventilov | 8 |
| O-tesnilo | NBR |
