Tlačni reg. iz nerja. jekla1.4401G 3/41.7 - 17.5 bar
SKU: 133532RIE
EAN: 4047322479219

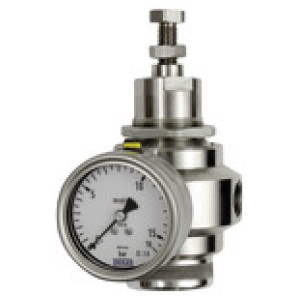

Stainless steel pressure regulator, 1.4401, with secondary venting (reversible), Size 3, G 3/4, Control range 1.7 - 17.5 bar
Stainless steel regulators for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Pressure setting by hexagon head screw.
Obrestno financiranje
- 17,12 € x 48 mesecev
- 21,88 € x 36 mesecev
- 31,43 € x 24 mesecev
- 60,17 € x 12 mesecev
- 117,70 € x 6 mesecev
- 232,79 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.
| Šifra | Navoj | Min. krmilno območje [bar] | Velikost | Max. krmilno območje [bar] | C [mm] | A [mm] | D [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133527RIE | G 3/8 | 0.4 | 1 | 4 | 50.0 | 64.0 | 117.0 | 167.0 | 4900 | Čas dobave: Predvidoma 3 - 5 dni | 512,92 € |  | |
| 133529RIE | G 1/2 | 0.4 | 3 | 4 | 50.0 | 82.0 | 119.0 | 169.0 | 6175 | Čas dobave: Predvidoma 3 - 5 dni | 643,00 € | | |
| 133530RIE | G 1/2 | 1.7 | 3 | 17.5 | 50.0 | 82.0 | 119.0 | 169.0 | 6175 | Čas dobave: Predvidoma 3 - 5 dni | 643,00 € | | |
| 133528RIE | G 3/8 | 1.7 | 1 | 17.5 | 50.0 | 64.0 | 117.0 | 167.0 | 4900 | Čas dobave: Predvidoma 3 - 5 dni | 512,92 € | | |
| 133526RIE | G 1/4 | 1.7 | 1 | 17.5 | 50.0 | 64.0 | 117.0 | 167.0 | 2320 | Čas dobave: Predvidoma 3 - 5 dni | 512,92 € | | |
| 133533RIE | G 1 | 0.4 | 4 | 4 | 100.0 | 120.0 | 136.0 | 236.0 | 10195 | Čas dobave: Predvidoma 3 - 5 dni | 1.734,72 € | | |
| 133531RIE | G 3/4 | 0.4 | 3 | 4 | 50.0 | 82.0 | 119.0 | 169.0 | 10195 | Čas dobave: Predvidoma 3 - 5 dni | 643,00 € | | |
| 133525RIE | G 1/4 | 0.4 | 1 | 4 | 50.0 | 64.0 | 117.0 | 167.0 | 2320 | Čas dobave: Predvidoma 3 - 5 dni | 512,92 € | | |
| 133534RIE | G 1 | 1.7 | 4 | 17.5 | 100.0 | 120.0 | 136.0 | 236.0 | 10195 | Čas dobave: Predvidoma 3 - 5 dni | 1.734,72 € | | |
| 133532RIE | G 3/4 | 1.7 | 3 | 17.5 | 50.0 | 82.0 | 119.0 | 169.0 | 10195 | Čas dobave: Predvidoma 3 - 5 dni | 643,00 € | |
Opis
Stainless steel pressure regulator, 1.4401, with secondary venting (reversible), Size 3, G 3/4, Control range 1.7 - 17.5 bar
Stainless steel regulators for use in the chemical industry, mining, plant construction and
special machinery industries, pneumatics, etc.
Pressure setting by hexagon head screw.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 30 |
| Ohišje | Stainless steel 1.4401 (AISI 316) |
| Tesnilo | NBR |
| Membrane | NBR/PTFE |
| Max. temperatura medija [°C] | 80 |
| Max. sobna temperatura [°C] | 80 |
| Pretok [l/min] | 10195 |
| Min. krmilno območje [bar] | 1.7 |
| Max. krmilno območje [bar] | 17.5 |

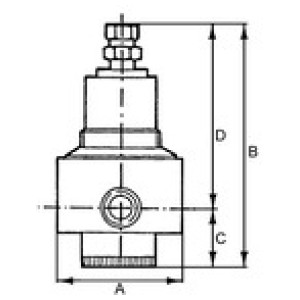

| A [mm] | 82.0 |
| B [mm] | 169.0 |
| C [mm] | 50.0 |
| D [mm] | 119.0 |
| Merjenje pretoka | At P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar |
| Velikost | 3 |
