Tlačni reg. s pnevmatskim dalj. upravljanjem »multifix«G 3/4
SKU: 133105RIE
EAN: 4047322475938

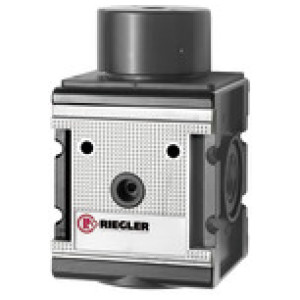

Pressure regulator pneumatic remote controlled »multifix«, without pressure gauge, Size 4, G 3/4, Input pressure max. 16 bar

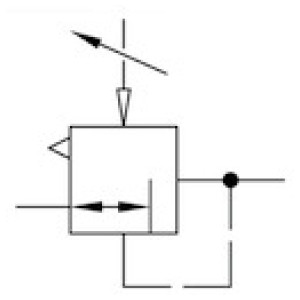

Diaphragm pressure regulator, self-relieving, with pneumatic remote control. The pressure is set with a pilot pressure regulator (1:1 ratio). The output pressure corresponds to the set pressure of the pilot pressure regulator. Either a standard or a precision pressure regulator can be used to regulate the pilot pressure.
Obrestno financiranje
- 16,94 € x 12 mesecev
- 33,13 € x 6 mesecev
- 65,53 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

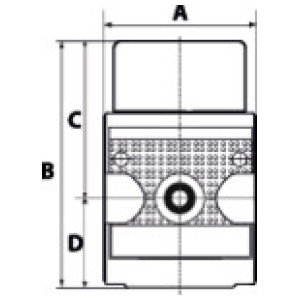

| Šifra | Merjenje pretoka | Navoj | Ohišje | Povezava vodenega zračnega tlaka | Velikost | DN | D [mm] | A [mm] | C [mm] | B [mm] | Pretok [l/min] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100462RIE | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar | G 1/4 | Die-cast zinc | G 1/8 | 1 | 6 | 27.0 | 48.0 | 48.0 | 75.0 | 2100 | Čas dobave: Predvidoma 3 - 5 dni | 107,07 € |  | |
| 100463RIE | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar | G 1/2 | Die-cast zinc | G 1/4 | 3 | 15 | 35.0 | 69.0 | 59.0 | 94.0 | 8500 | Čas dobave: Predvidoma 3 - 5 dni | 146,05 € | | |
| 133106RIE | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar | G 1 | Die-cast aluminium | G 1/4 | 4 | 25 | 53.0 | 85.0 | 88.0 | 141.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 181,13 € | | |
| 100464RIE | At P1 = 10 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar | G 1 | Aluminium | G 1/4 | 5 | 25 | 52.0 | 100.0 | 60.0 | 112.0 | 17500 | Čas dobave: Predvidoma 3 - 5 dni | 206,31 € | | |
| 133105RIE | At P1 = 10,3 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar | G 3/4 | Die-cast aluminium | G 1/4 | 4 | 20 | 53.0 | 85.0 | 88.0 | 141.0 | 12000 | Čas dobave: Predvidoma 3 - 5 dni | 181,13 € | |
Opis
Pressure regulator pneumatic remote controlled »multifix«, without pressure gauge, Size 4, G 3/4, Input pressure max. 16 bar
Diaphragm pressure regulator, self-relieving, with pneumatic remote control. The pressure is set with a pilot pressure regulator (1:1 ratio). The output pressure corresponds to the set pressure of the pilot pressure regulator. Either a standard or a precision pressure regulator can be used to regulate the pilot pressure.
Tehnični podatki in specifikacije
| Navoj | G 3/4 |
| Max. vhodni tlak [bar] | 16 |
| Velikost | 4 |
| Tesnilo | NBR |
| Max. temperatura medija [°C] | 60 |
| Max. sobna temperatura [°C] | 60 |
| Pretok [l/min] | 12000 |
| DN | 20 |
| A [mm] | 85.0 |
| B [mm] | 141.0 |
| C [mm] | 88.0 |
| D [mm] | 53.0 |
| Ohišje | Die-cast aluminium |
| Serija | multifix |
| Merjenje pretoka | At P1 = 10,3 bar, P2 = 6,3 bar and pressure drop Δp = 1 bar |
| Povezava vodenega zračnega tlaka | G 1/4 |
