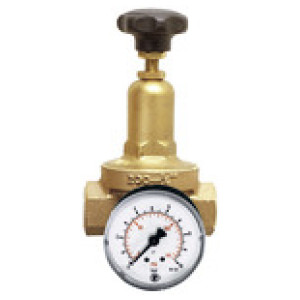

Tlačni regulator DRV 200, Stinard design, G 3/4, 1.5 - 8 bar
SKU: 101429RIE
EAN: 4047322033688
Pressure regulator DRV 200, Standard design, non-reversible, incl. pressure gauge, G 3/4, Control range 1.5 - 8 bar
Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence
minimal friction.
Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.

Obrestno financiranje
- 12,07 € x 24 mesecev
- 23,11 € x 12 mesecev
- 45,21 € x 6 mesecev
- 89,42 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

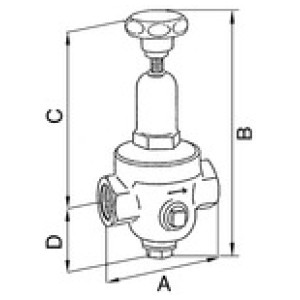

Šifra | Navoj | Vzmet pokrova motorja | Pretok KVS vrednost [m³/h] | DN | D [mm] | A [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
---|---|---|---|---|---|---|---|---|---|---|---|---|
101426RIE | G 1/4 | Pressed brass | 0.5 | 8 | 47.0 | 70.0 | 120.0 | 167.0 | Čas dobave: Predvidoma 3 - 5 dni | 147,41 € | | |
101431RIE | G 1 1/4 | Grey cast iron | 4.2 | 32 | 61.0 | 104.0 | 262.0 | 323.0 | Čas dobave: Predvidoma 3 - 5 dni | 528,27 € | | |
101427RIE | G 3/8 | Pressed brass | 0.6 | 10 | 47.0 | 70.0 | 121.0 | 168.0 | Čas dobave: Predvidoma 3 - 5 dni | 147,41 € | | |
101433RIE | G 2 | Grey cast iron | 7.2 | 50 | 70.0 | 146.5 | 306.0 | 376.0 | Čas dobave: Predvidoma 3 - 5 dni | 917,51 € | | |
101430RIE | G 1 | Pressed brass | 1.6 | 25 | 56.0 | 95.0 | 186.0 | 242.0 | Čas dobave: Predvidoma 3 - 5 dni | 382,91 € | | |
101428RIE | G 1/2 | Pressed brass | 1.2 | 15 | 46.5 | 85.0 | 142.0 | 188.5 | Čas dobave: Predvidoma 3 - 5 dni | 193,76 € | | |
101432RIE | G 1 1/2 | Grey cast iron | 4.5 | 40 | 61.0 | 108.0 | 262.0 | 323.0 | Čas dobave: Predvidoma 3 - 5 dni | 614,54 € | | |
101429RIE | G 3/4 | Pressed brass | 1.3 | 20 | 46.5 | 85.0 | 143.0 | 189.5 | Čas dobave: Predvidoma 3 - 5 dni | 247,42 € | |
Opis
Pressure regulator DRV 200, Standard design, non-reversible, incl. pressure gauge, G 3/4, Control range 1.5 - 8 bar
Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence
minimal friction.
Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.
Tehnični podatki in specifikacije
Navoj | G 3/4 |
Max. vhodni tlak [bar] | 25 |
Max. temperaturno območje [°C] | 75 |
Ohišje | Red brass 2.1096.01 |
Tesnilo | NBR |
DN | 20 |
Min. krmilno območje [bar] | 1.5 |
Max. krmilno območje [bar] | 8 |
Pretok KVS vrednost [m³/h] | 1.3 |
Vzmet pokrova motorja | Pressed brass |
Razmerje zmanjšanja max. | 10:1 |
A [mm] | 85.0 |
B [mm] | 189.5 |
C [mm] | 143.0 |
D [mm] | 46.5 |
