* slike so simbolične

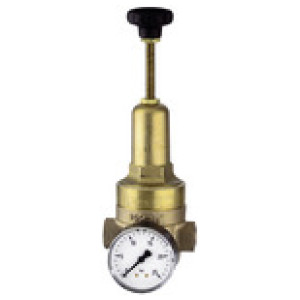

Tlačni regulator DRV 225, Visokotlačna izvedba, G 1/2, 1.5 - 20
SKU: 101439RIE
EAN: 4047322084277
Pressure regulator DRV 225, High pressure design, non-reversible, incl. pressure gauge, G 1/2, Control range 1.5 - 20 bar
Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence
minimal friction.
Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.
Obrestno financiranje
- 12,30 € x 48 mesecev
- 15,72 € x 36 mesecev
- 22,58 € x 24 mesecev
- 43,23 € x 12 mesecev
- 84,57 € x 6 mesecev
- 167,26 € x 3 mesecev
Leanpay omogoča enostavne obročne nakupe preko spleta. Za obročno plačilo v košarici izberi Leanpay. Informativni izračun ne vključuje stroškov ocene tveganja.

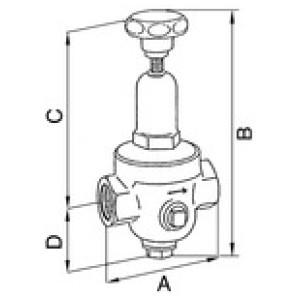

| Šifra | Navoj | Vzmet pokrova motorja | Pretok KVS vrednost [m³/h] | DN | D [mm] | A [mm] | C [mm] | B [mm] | Zaloga | Cena | Nakup | Natisni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 101444RIE | G 2 | Grey cast iron | 7.2 | 50 | 70.0 | 146.5 | 349.0 | 419.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.858,77 € |  | |
| 101438RIE | G 3/8 | Pressed brass | 0.6 | 10 | 47.0 | 70.0 | 141.0 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 357,42 € | | |
| 101443RIE | G 1 1/2 | Grey cast iron | 4.5 | 40 | 61.0 | 108.0 | 331.0 | 392.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.389,09 € | | |
| 101441RIE | G 1 | Pressed brass | 1.6 | 25 | 56.0 | 95.0 | 201.0 | 257.0 | Čas dobave: Predvidoma 3 - 5 dni | 839,99 € | | |
| 101442RIE | G 1 1/4 | Grey cast iron | 4.2 | 32 | 61.0 | 104.0 | 324.0 | 385.0 | Čas dobave: Predvidoma 3 - 5 dni | 1.137,70 € | | |
| 101440RIE | G 3/4 | Pressed brass | 1.3 | 20 | 46.5 | 85.0 | 182.0 | 228.5 | Čas dobave: Predvidoma 3 - 5 dni | 574,25 € | | |
| 101437RIE | G 1/4 | Pressed brass | 0.5 | 8 | 47.0 | 70.0 | 141.0 | 188.0 | Čas dobave: Predvidoma 3 - 5 dni | 357,42 € | | |
| 101439RIE | G 1/2 | Pressed brass | 1.2 | 15 | 46.5 | 85.0 | 182.0 | 228.5 | Čas dobave: Predvidoma 3 - 5 dni | 462,33 € | |
Opis
Pressure regulator DRV 225, High pressure design, non-reversible, incl. pressure gauge, G 1/2, Control range 1.5 - 20 bar
Diaphragm pressure regulators with non-self-relieving design and non-pressure-reduced single-seated valve. Very precise adjustment and good response characteristic because there are only a few moving parts and hence
minimal friction.
Ideal for compressed air, nitrogen and other neutral, non-flammable gases, but only suitable for liquids with comparatively low flow rates.
Tehnični podatki in specifikacije
| Navoj | G 1/2 |
| Max. vhodni tlak [bar] | 40 |
| Max. temperaturno območje [°C] | 75 |
| Ohišje | Red brass 2.1096.01 |
| Tesnilo | NBR |
| DN | 15 |
| Min. krmilno območje [bar] | 1.5 |
| Max. krmilno območje [bar] | 20 |
| Pretok KVS vrednost [m³/h] | 1.2 |
| Vzmet pokrova motorja | Pressed brass |
| Razmerje zmanjšanja max. | 6:1 |
| A [mm] | 85.0 |
| B [mm] | 228.5 |
| C [mm] | 182.0 |
| D [mm] | 46.5 |
